GE17ES Radial Spherical Sliding Bearing For Hydraulic Engineering

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO 16949

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Name:	Radial Spherical Plain Bearings	Basic Dynamic Load Rating, Radial:	21300 N
Basic Static Load Rating, Radial:	106000 N	Mass:	0,039 Kg
Dimensions:	12018085MM	Material:	Chrome Steel
Application:	Hydraulic Engineering, Metal Forming Machine Tools, Engineering Machinery
High Light:	Chrome Steel Spherical Sliding Bearing , GE17ES Spherical Sliding Bearing , Radial Spherical Sliding Bearing

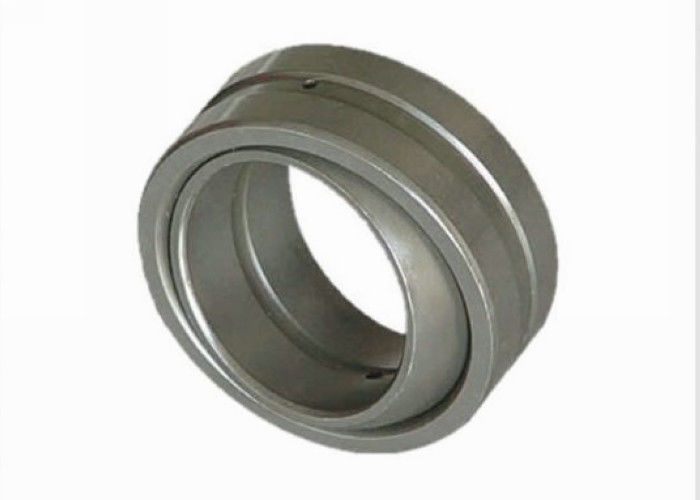

Miniature Radial Spherical Plain Bearing Clearance Slide Type GE17ES

Name: GE17ES Radial Spherical Sliding Bearing For Hydraulic Engineering
Brand: OEM

Description

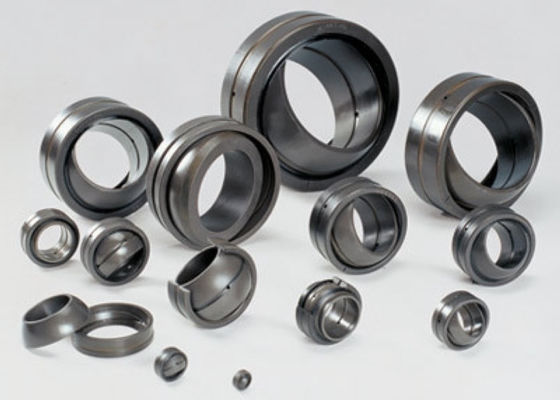

Spherical Plain Bearing is a kind of silding bearing with special structure. Its structure is easier then roller bearing, which mainly makes up of inner race’s outer track and outer race’s inner track., it can bear bigger load, and according to the different style ng structure, it can bear radial load, axis load or united load. Joint bearing generally uses in undulatory motion with lower speed, because of the sliding surface is spherical, it also can do the slant movement in a range of the angle.

Specifications

Spherical plain bearings GE17ES
requiring maintenance, to DIN ISO 12 240-1
d	17 mm	Tolerance: 0 / -0,008
D	30 mm	Tolerance: 0 / -0,009
B	14 mm	Tolerance: 0 / -0,12
	0,04 - 0,082 mm	Radial internal clearance
		CN
		Also available in groups C2 and C3
C	10 mm	Tolerance: 0 / -0,24
Da min	24 mm
da max	20,7 mm
dK	25 mm	No lubrication groove on spherical inner ring surface
r1s min	0,3 mm	Chamfer dimension
r2s min	0,3 mm	Chamfer dimension
α	10 °
m	0,039 kg	Mass
Cr	21300 N	Basic dynamic load rating, radial
C0r	106000 N	Basic static load rating, radial

Bearing No.	weight	Dimension (mm)			Basic Load
	g	d	D	B	C Kgf	Co Kgf
GE 10ES	12	10	19	6	210	5760
GE 12ES	17	12	22	7	300	7560
GE 15ES	32	15	26	9	480	11900
GE 17ES	49	17	30	10	600	15000
GE 20ES	65	20	35	12	840	20900
GE 25ES	115	25	42	16	1360	34100
GE 30ES	160	30	47	18	1760	44000
GE 35ES	258	35	55	20	2260	56400
GE 40ES	315	40	62	22	2300	70000
GE 45ES	413	45	68	25	3600	90000
GE 50ES	560	50	75	28	4400	111000
GE 60ES	1100	60	90	36	6910	173000
GE 70ES	1540	70	105	40	8830	221000
GE 80ES	2290	80	120	45	11300	284000
GE 90ES	2840	90	130	50	13800	345000
GE 100ES	4430	100	150	55	17200	429000
GE 110ES	4940	110	160	55	18500	462000
GE 120ES	8120	120	180	70	26900	672000
GE 140ES	11300	140	210	70	30200	756000
GE 160ES	14400	160	230	80	38400	960000
GE 180ES	18900	180	260	80	43200	1080000
GE 200ES	28100	200	290	100	60000	1500000
GE 220ES	36100	220	320	100	66000	1650000
GE 240ES	40400	240	340	100	72000	1800000

Applications

Application Company	Distributors, Retailers, End users
Application Places	Joint bearings are widely used in hydraulic engineering, metal forming machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industry
