| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Material: | Si3N4 | Density: | 3.2g/cm3 |
|---|---|---|---|
| Grad: | G5-G200 | HV Hardness: | 1700 HRC |
| Coefficient Of Expansion: | 3.20 10^-6/℃ | The Highest Temperature: | 1000℃ |
| High Light: | Si3N4 High Temperature Ceramic Bearings,3.2g/cm3 High Temperature Ceramic Bearings,Si3N4 Ceramic Ball Bearings |
||
1700 HRC 3.2g/cm3 i3N4 1000℃ High Temperature Ceramic Bearings

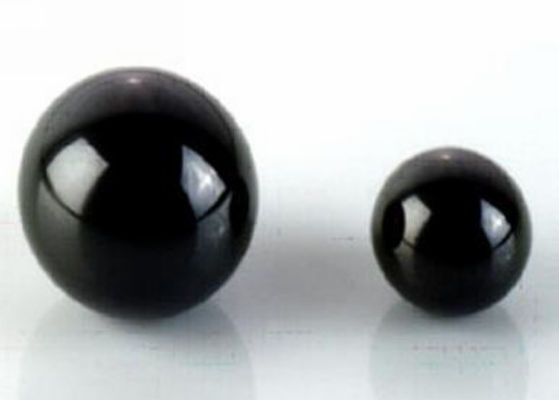

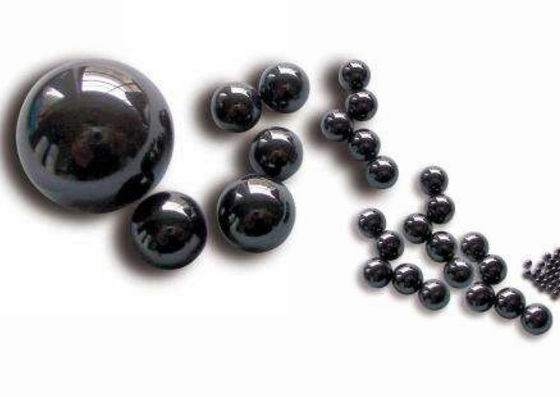

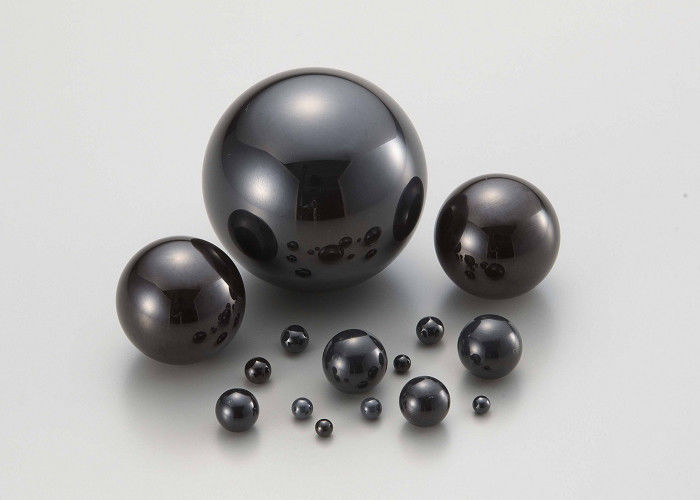

Si3N4 Ceramic Ball with good ability of isolation and no magnetism is the precision ceramic that fired in high temperature without oxidation air, which has the high intension, high wearing resistance, high temperature resistance, anti-canker, strong acid and alkali resistance, can be used in seawater for a long time. At 800℃, the intension and rigidity almost couldn’t be changed, whose density is 3.20g/cm3 and is the 1/3 of the weight of bearing steel. There are small centrifugal force when circumgyrating and run at high speed. Si3N4 Ceramic Ball also has the self-lubrication, and can be used in the environment with no lubricate medium and high pollution.
| Staple Material and Manufacturing Presision | ||||
| Ceramic Balls | Plastic balls | Glass Balls | Stainless Balls | |
| meterial | Zr02,Si3N4,SiC,Al2O3 | POM,PE,PP,PA,UPE,PEEK | GLASS | 440C,304,316,316L |
| grad | G5-G200 | G100-G1000 | G100-G1000 | G10-G200 |
| Staple size of the balls | ||||
| Size(inch) | Size(mm) | Size(inch) | Size(mm) | |
| 1.5 | 1/16" | 1.588 | ||
| 2 | 3/32 | 2.381 | ||
| 1/8" | 3.175 | 5/32" | 3.969 | |
| 3/16" | 4.763 | 7/32" | 5.556 | |
| 1/4" | 6.35 | 17/64" | 6.747 | |
| 7 | 9/32" | 7.144 | ||
| 5/16" | 7.938 | 11/32" | 8.731 | |
| 3/8" | 9.525 | 13/32" | 10.319 | |
| 7/16" | 11.112 | 29/64" | 11.509 | |
| 15/32" | 11.906 | 12 | ||
| 31/64" | 12.303 | 1/2" | 12.7 | |
| 17/32" | 13.494 | 14 | ||
| 9/16" | 14.288 | 19/32" | 15.081 | |
| 5/8" | 15.875 | 21/32" | 16.669 | |
| 11/16" | 17.463 | 23/32" | 18.256 | |
| 3/4" | 19.05 | 25/32" | 19.844 | |
| 20 | 13/16" | 20.638 | ||
| 7/8" | 22.225 | 15/16" | 23.812 | |
| 1" | 25.4 | 1-1/16" | 26.988 | |
| 1-1/8" | 28.575 | 1-3/16" | 30.163 | |
| 1-1/4" | 31.75 | 1-3/8" | 34.925 | |
| 35 | 1-1/2" | 38.1 | ||
| 1-5/8" | 41.275 | 1-11/16" | 42.863 | |
| 1-7/8" | 47.625 | 2" | 50.8 | |
| Tolerance and surface roughness of the balls | |||
| Grade | Variation of ball diameter | Deviation from ( △ Sph) | Surface roughness spherical from(Ra) |
| not over μ m | |||
| 3 | 0.08 | 0.08 | 0.012 |
| 5 | 0.13 | 0.13 | 0.02 |
| 10 | 0.25 | 0.25 | 0.025 |
| 16 | 0.4 | 0.4 | 0.032 |
| 20 | 0.5 | 0.5 | 0.04 |
| 28 | 0.7 | 0.7 | 0.05 |
| 40 | 1 | 1 | 0.08 |
| 60 | 1.5 | 1.5 | 0.1 |
| 100 | 2.5 | 2.5 | 0.125 |
| 200 | 5 | 5 | 0.2 |
