| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Material: | Al2O3v Ceramic | Density: | 3.70-3.99 G/cm3 |
|---|---|---|---|
| Grad: | G5-G200 | HV Hardness: | 1800 HRC |
| Coefficient Of Expansion: | 9.1 10^-6/℃ | The Highest Temperature: | 1500℃ |
| High Light: | 1100℃ Ceramic Ball Bearings,1800 HRC Ceramic Ball Bearings,Al2O3 Ceramic Ball Bearings |
||

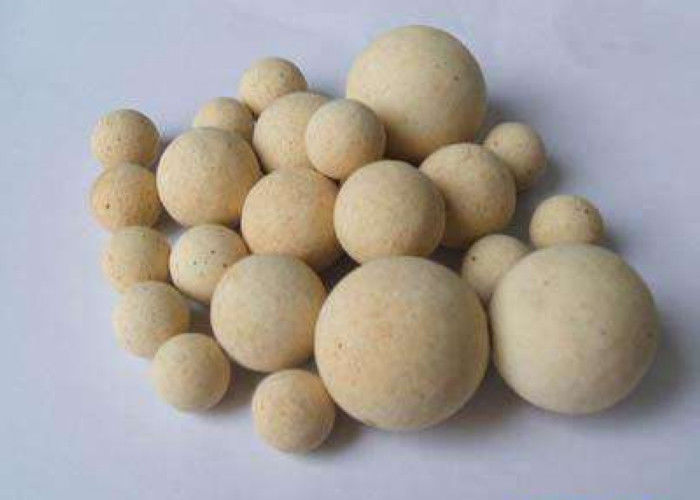

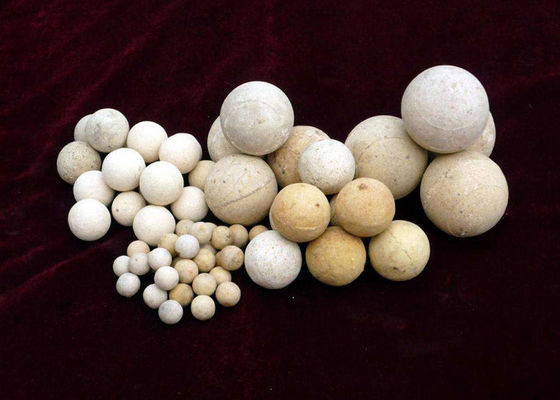

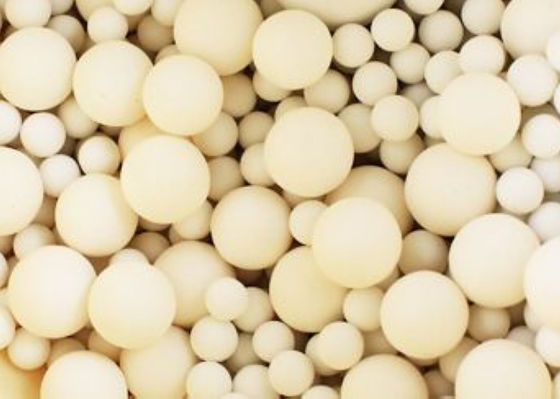

Al2O3 Ceramic Ball
Al2O3 Ceramic Ball at routine temperature has the super rigidity. At 1100℃, the rigidity and intension could not be changed, whose density is 3.7-3.99g/cm3, the rigidity is higher than ZrO2, but the anti-bend intension and rupture toughness is lower than ZrO2.
| Staple Material and Manufacturing Presision | ||||
| Ceramic Balls | Plastic balls | Glass Balls | Stainless Balls | |
| meterial | ZrO2,Si3N4,SiC,Al2O3 | POM,PE,PP,PA,UPE,PEEK | GLASS | 440C,304,316,316L |
| grad | G5-G200 | G100-G1000 | G100-G1000 | G10-G200 |
| Staple size of the balls | ||||
| Size(inch) | Size(mm) | Size(inch) | Size(mm) | |
| 1.5 | 1/16" | 1.588 | ||
| 2 | 3/32 | 2.381 | ||
| 1/8" | 3.175 | 5/32" | 3.969 | |
| 3/16" | 4.763 | 7/32" | 5.556 | |
| 1/4" | 6.35 | 17/64" | 6.747 | |
| 7 | 9/32" | 7.144 | ||
| 5/16" | 7.938 | 11/32" | 8.731 | |
| 3/8" | 9.525 | 13/32" | 10.319 | |
| 7/16" | 11.112 | 29/64" | 11.509 | |
| 15/32" | 11.906 | 12 | ||
| 31/64" | 12.303 | 1/2" | 12.7 | |
| 17/32" | 13.494 | 14 | ||
| 9/16" | 14.288 | 19/32" | 15.081 | |
| 5/8" | 15.875 | 21/32" | 16.669 | |
| 11/16" | 17.463 | 23/32" | 18.256 | |
| 3/4" | 19.05 | 25/32" | 19.844 | |
| 20 | 13/16" | 20.638 | ||
| 7/8" | 22.225 | 15/16" | 23.812 | |
| 1" | 25.4 | 1-1/16" | 26.988 | |
| 1-1/8" | 28.575 | 1-3/16" | 30.163 | |
| 1-1/4" | 31.75 | 1-3/8" | 34.925 | |
| 35 | 1-1/2" | 38.1 | ||
| 1-5/8" | 41.275 | 1-11/16" | 42.863 | |
| 1-7/8" | 47.625 | 2" | 50.8 | |
| Tolerance and surface roughness of the balls | |||
| Grade | Variation of ball diameter | Deviation from ( △ Sph) | Surface roughness spherical from(Ra) |
| not over μ m | |||
| 3 | 0.08 | 0.08 | 0.012 |
| 5 | 0.13 | 0.13 | 0.02 |
| 10 | 0.25 | 0.25 | 0.025 |
| 16 | 0.4 | 0.4 | 0.032 |
| 20 | 0.5 | 0.5 | 0.04 |
| 28 | 0.7 | 0.7 | 0.05 |
| 40 | 1 | 1 | 0.08 |
| 60 | 1.5 | 1.5 | 0.1 |
| 100 | 2.5 | 2.5 | 0.125 |
| 200 | 5 | 5 | 0.2 |
