42w/mk 140N/mm² Self lubrication Polymer Plain Bearings

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO 3547 DIN 1494
Model Number:	Metric Cylindrical DP4 Bush alternative

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Name:	Polymer Plain Bearings	Size:	Metric Sizes, Available From Stock
Meterial:	Steel Sintered Bronze Sliding Layer PTFE	Application:	Hydraulic Oil Lubrication
Type:	Wrapped Bushes, Flanged Bearing, Thrust Washer	Plating:	Tin-plated Or Copper-plated
High Light:	DIN 1494 Polymer Plain Bearings , ISO 3547 Polymer Plain Bearings , 42w/mk Polymer Plain Bearings

42w/mk 140N/mm² Self lubrication Polymer Plain Bearings

DIN 1494 / ISO 3547 Also available: lead free!Special dimensions are only available on request.It is a dry sliding bearing with a PTFE sliding layer. Lubrication is therefore not necessary. But it is suitable for lubricated applications (such as hydraulic oil lubrication).

VIIPLUS offers an extensive range of sliding bearings to fulfil your needs!With our China engineering know-how and our extensive range of bushing materials, we are able to solve nearly every Dry Sliding Bearing issue.

Plain bearings. Appearance and characterization of damage to metallic hydrodynamic bearings.

Product Name	PTFE Steel Bushing
Max Load Capacity	Static load 250N/mm2 ; Dynamic load 140N/mm2
Max Load Speed	Dry friction 2.5m/s ; Oil lubrication 5.0m/s
Max PV Value Limit	Dry friction 3.6N/mm2 m/s ; Oil lubrication 50N/mm2 m/s
Friction Coefficient	Dry friction 0.08~0.20 ; Oil lubrication 0.02~0.07
Work Temperature	-195℃~+280℃
Thermal Conductivity	42w/m k
Production Process	Material cutting~Bronze sintering~PTFE sintering~Sizing~Coiling~Surface finish~Packing
Application Feature	Self lubrication, Low wear, Low friction, Low noise, Good sliding characteristic, Pb free

Tolerance Details

Housing ØH7 Bushing inner-Ø after mounting H9 Shaft tolerancef7 to h8

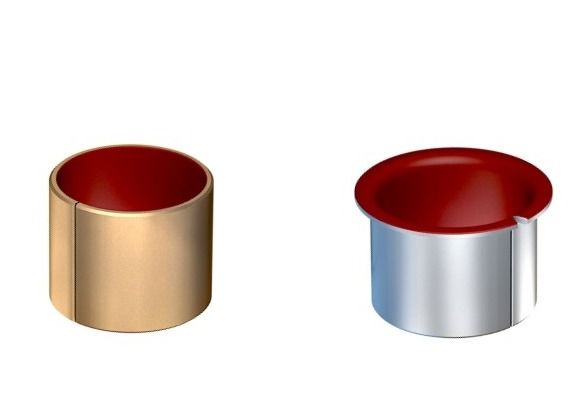

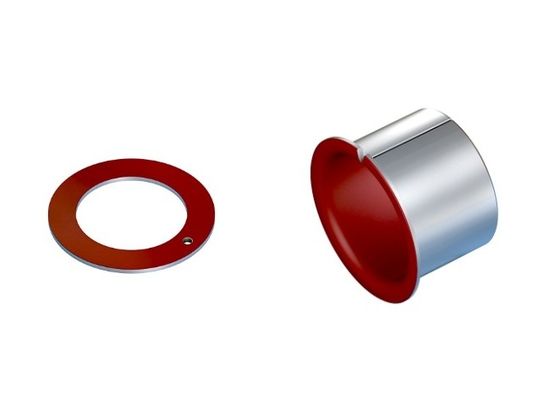

Self lubricating bearings type

Sleeve Bushing
Flanged bushings
Thrust washer
Strips

Support material Steel tin-plated
Intermediate layerSintered bronze
Sliding layerPTFE

Application

Machine and plant construction, textile processing and agricultural maschines, hydraulic pumps, automotive industry sliding bearing and bushing technology

1. No oil lubrication or less oil lubrication, suitable for places where it is impossible to add oil or it is difficult to add oil. It can be used without maintenance or with less maintenance.
2. Good wear resistance, small friction coefficient and long service life.

3. There is an appropriate amount of elastoplasticity, which can distribute the stress on a wider contact surface and improve the bearing capacity of the bearing.

4. The static and dynamic friction coefficients are similar, which can eliminate crawling at low speed, thereby ensuring the working accuracy of the machine.
5. It can make the machine reduce vibration, reduce noise, prevent pollution and improve working conditions.
6. The transfer film can be formed during the movement to protect the friction shaft without biting the shaft.
7. The hardness of the friction shaft is low, and more shafts without tempering treatment can be used, thereby reducing the difficulty of processing related parts.
8. Thin wall structure, light weight, can reduce mechanical volume.
9. A variety of metals can be electroplated on the back of the steel, which can be used in corrosive media; it has been widely used in sliding parts of various machines.

Polymer Plain Bearings
