| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Features: | High Wear And Corrosion Resistance | Material: | Low Carbon Steel |
|---|---|---|---|
| Types: | Wrapped Bushes | Alloy Hardness: | HB 45-70 |
| Max. Load: | 130N/mm² | Max. Working Temperature: | Grease Lubrication Is 150℃, Oil Lubrication Is 250℃ |
| Sample: | Avaliable | Size: | As Required |
| Bearing Type: | Plain | ||
| High Light: | 130N/mm² Plain Bush Bearing,250℃ Plain Bush Bearing,2m/s Plain Bush Bearing |
||

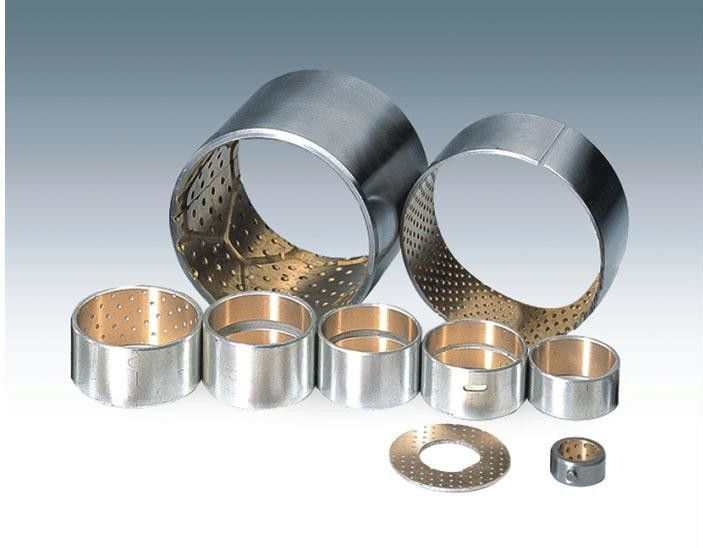

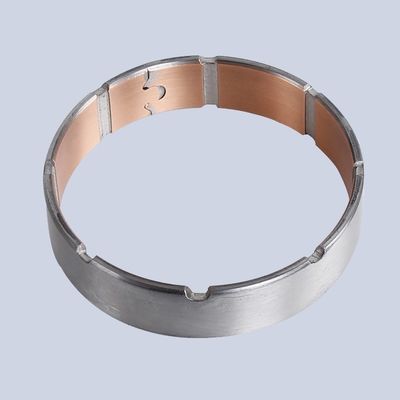

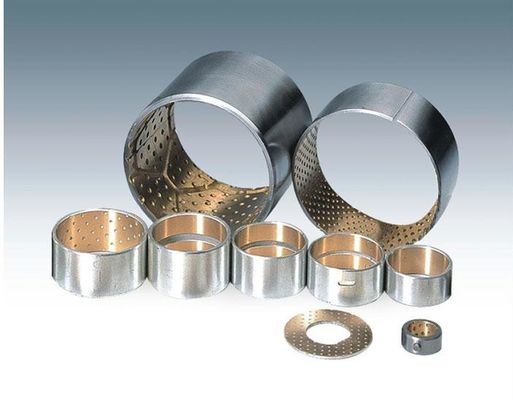

High Fatigue Strength Low Carbon Steel Plain Bush Bearing
Bimetal Bearings, Low Carbon Steel With CuSn4Pb24
The product is made of high quality low-carbon steel, and sintered and rolled copper alloy as its surface. It has high fatigue strength, load capacity and impact strength. The product is applied to con-rod of automobile engines, transmission gearbox, engineering and agriculture machinery, etc.
| Materials | Alloy Layer Components | Equivalent Standard | Alloy Layer Hardness |
| JF800 | CuPbl0Snl0 | JIS-LBC3/SAE-797 | HB70-100 |
| JF720 | CuPb24Sn4 | JIS-LBC6/SAE-799 | HB45-70 |
| JF700 | CuPb30 | JIS-KJ3/SAE-48 | HB30-45 |
| JF20 | AISn20Cu | JIS-AJL/SAE-783 | HB30-40 |
| Technical Parameters: | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
