OEM ODM OBM Hydraulic Engineering Plain Spherical Bearing

Spherical Plain Bearing , OEM , ODM , OBM Services Spherical Bearings

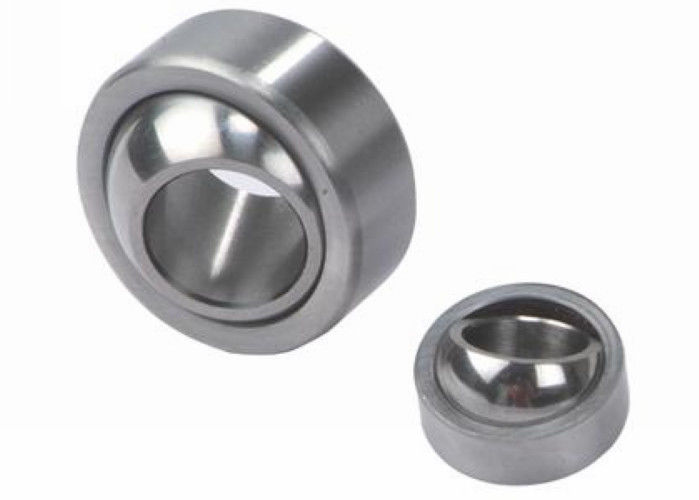

Spherical plain bearings have an inner ring with a sphere convex outside surface and an outer ring with a correspondingly

Sphered out concave inside surfcaster. The design makes them particularly suitable for bearing arrangements where

Alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or

Slewing movements must be permitted ar relatively slow sliding speeds.

Applicant

Spherical plain bearings are widely used in hydraulic engineering, metal forming machine tools, engineering machinery,

Automation equipment, automotive shock absorbers, irrigation machinery and other industries.

Spherical plain bearings, the basic model is made with a sliding spherical contact surface the inner and outer components.

According to its structure and type, can bear radial load, axial load , or radial, axial joint load acting simultaneously .

Because of the spherical plain bearings sliding contact area, tilt angle is large , but also because most of the bearings

Taken a special treatment process methods, such as surface phosphating, zinc, chrome or outer sliding surface lining,

Insert pads, spraying.

Therefore , greater load capacity and impact resistance , and has anti- corrosion , abrasion , self-aligning , self-lubricating lubrication better or no lubrication contaminating features , even if the installation dislocation can also work .

Therefore, joint bearings are widely used for slower swing motion , tilt and rotation movement .

Composition

Joint bearing outer ring is dominated by an inner ring and an integral. Spherical outer ring and the inner ring of the inner

Spherical sliding friction composition.

UIB provide commercial use spherical plain bearings, the quality and appearance achieve brand Europe level. For meeting

a variety of applications that require custom engineered units or special materials. Please read PDF catalog for exact

Selection

Catalog Index:

Requiring maintenance Steel-on-steel-GE ES 2RS (GE DO)

Requiring maintenance Steel-on-steel-GEH ES (GE FO)

Steel-on-steel, extended inner ring-GEG..ES (GE LO)

Steel-on-steel, extended inner ring-GEM..ES-2RS (GE..HO-2RS)

Requiring maintenance, steel-on-steel-GE..-PB

Requiring maintenance, steel-on-steel-GEF..ES (SB..A) Maintenance free-GE C (GE UK),GE..UK-2RS

Maintenance free-GEH..C (GE..FW), GEG..ET-2RS (GE..FW-2RS)

Maintenance free-GE..PW, PB

Inch size-Requiring maintenance, steel-on-steel-GEZ..ES-2RS (GE..ZO) Inch size-Requiring maintenance, steel-on-steel-GEGZ..ET-2RS

Inch size-Maintenance-free -GEZ..ET-2RS

Inch size-commercial Series / PTFE Liners Available-COM (COMH)

Inch size-high Misalignment Series Spherical Bearings-HIN-T(HAB-T) Angular contact spherical plain bearings-GAC..S (GE..SX)
