Custom E90 E90F PRM PRMF BMZ FB090 Bronze Sleeve Bushings

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO 9001
Model Number:	FB090 BRONZE BUSHINGS

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Name:	Bronze Sleeve Bearings	Bushing Material:	TIN BRONZE CUSN8 CUSN6
Feature:	High Temperature Resistance,Wear Resistance,corrosion Resistance	Performance:	High Load Capacity And Long Life
Type:	Sleeve,Flange,Thrust Washer	NO:	FB090 BRONZE BUSHINGS
High Light:	FB090 Bronze Sleeve Bushings , BMZ Bronze Sleeve Bushings , PRM Bronze Sleeve Bushings

Custom E90 E90F PRM PRMF BMZ FB090 Bronze Sleeve Bushings

Customized Bronze Sleeve Sliding Bearings CuSn8P(Qsn8-0.3)

Customer's drawing, various material, size and type, open seam can be divided (straight seam) or snapped (deadbolt), etc.

High load capacity and long life

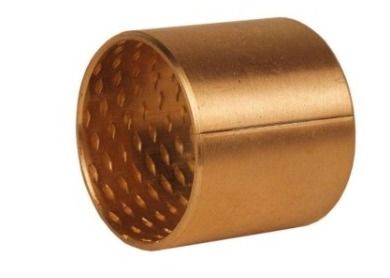

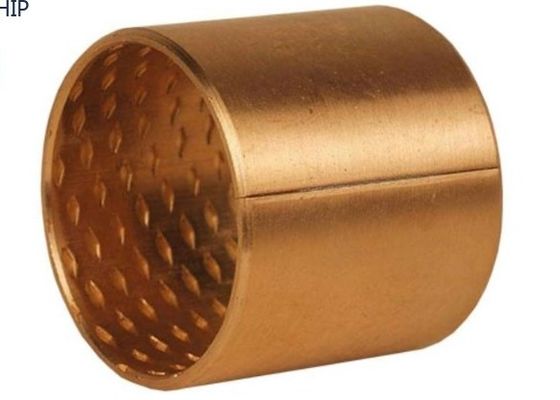

FB090 Sleeve Bush With Diamond Hole Shape Bushing Bronze Wrapped Bearing & Wrapped Bronze Flange Bearing

Brown sliding bushes (E90, E90F, PRM, PRMF, BMZ, FB090) Slide bearing bushes of the BRM type, i.e. the bushes are made of brown tape (Cu 91.3%, Sn 8.5%) with diamond-lubricated pockets. Sliding sleeves designed for harsh conditions, have high abrasion resistance, carry high loads. Operating range -100 ° C to + 200 ° C. Bearings require lubrication, they can work in rotational, swinging or sliding motion. Plain bearings of this type are used in construction machines of hoists, switches, etc. Dimension series as in the table or acc. drawing.

FB090 & FB092 Wrapped Bronze Bearing Material: CuSn8P CuSn6.5P bronze bushings

	QUALITY BRONZE BUSHING MATERIAL
	PN	DIN
BRONZE SLEEVE BUSHING MATERIAL	B101	CuSn10P
	B8	CuSn8
	BA1032	CuAl10Fe3Mn2
	BA1054	CuAl10Ni5Fe4
	RG7	CuSn7Zn4Pb7
	B815	CuSn8Pb15Ni
	BK331	CuSi3Zn3Mn1

Tech. Data:

Physical and mechanical Performance	Mating Axis	Hardness	≥50 HRC
	Mating Axis	Roughness	0.4~1.0
	Max Load Pressure		100 N/mm2
	Max Linear Velocity		2 m/s
	Max PV Value		2.8 N/mm2*m/s
	Tensile Strength		460 N/mm2
	Yield Strength		260 N/mm2
	Hardness		90-150 HB
	Working Temperature		150 ℃
	Friction Coef.		0.05~0.2u
	Heat Conducting Coef.		58W/(m*k)
	Heat Expansion Coef.		18.5 (10(-6)k(-1)

Resuest
It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
