WGB-090 CuSn8P Self Lubricating Rolled Bronze Wrapped Bearings

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Model Number:	FB090

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Type:	Sliding	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Construction Works
Precision Rating:	DIN1494	Material:	Bronze
Lubricating:	Grease/Oil Lubricated	Application:	All Kinds Of Machinery And Equipment
Series&Size,dimension:	As Customer Drawing	Other Products:	Bimetal Bush
Bush Types:	Cylindrical	Customized:	Customized Drawings
Samples:	Acceptable	Quality:	International Standard
Port:	Shanghai Or Ningbo
High Light:	WGB-090 Bronze Wrapped Bearings , CuSn8P Bronze Wrapped Bearings , Self Lubricating Bronze Wrapped Bearings

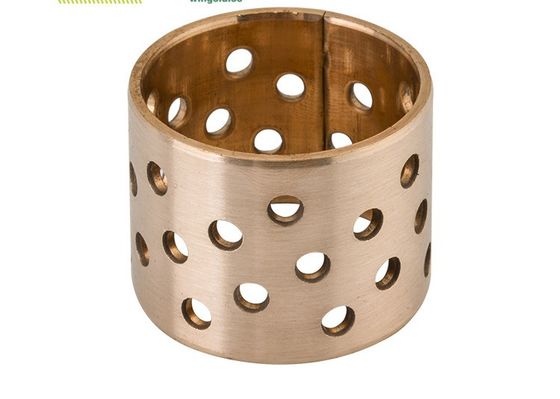

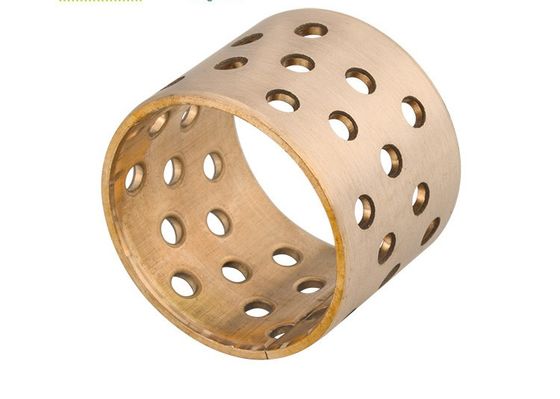

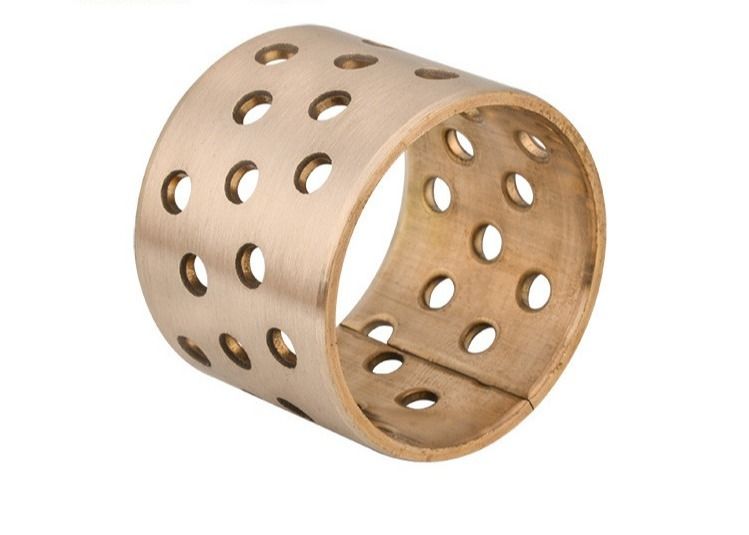

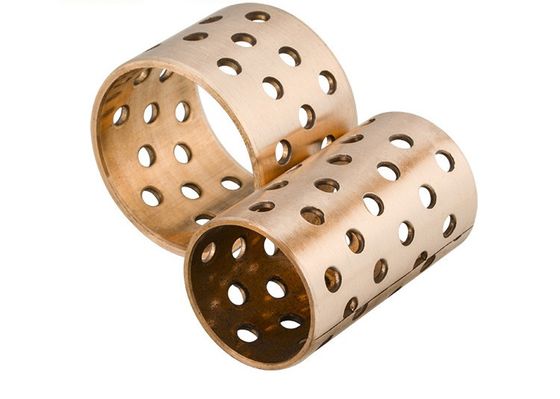

WGB-090 CuSn8P Self Lubricating Rolled Bronze Wrapped Bearings

Product Description

Product Name	WGB-090 Bronze Warpped Bearings
Material	CuSn8/CuSn6.5P0.1
Standard	ISO3547 (DIN1494)

Characterstics

· WGB-090 Bronze Warpped Bearings offer good wear and low friction performance over a wide range of loads, speeds and temperatures
· good performance in lubricated applications
·Very Good performance in greased applications
·Suitable for linear, oscillating and rotating movements

WGB-090 Bronze self-lubricating bearings used a kind of high density broze alloy of special compositions as base, surface of alloy is rolled diamond type of the oil indents or half ball oil indents, this kind of bearing has higher density, load capacity, well wearing performance, longer lifetime. It has been widely used in many fields, such as hoist machines, building machinery, machine tool industry and mining machinery.

Technical Date

Maximum load	Static load	N/mm²	120
	Dynamic load	N/mm²	40
Operating temperature	Minimal	℃	-40
	Max greased	℃	150
	Max oil lubricated	℃	250

Grease/Oil lubricated	Maximum sliding speed	m/s	2.5
	Maximum PV factor	N/mm²·m/s	2.8
	Coefficient of friction		0.06-0.15
