| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO9001:2008 CuSn8, CuSn6.5, Brass |
| Model Number: | LD Bronze Bearings made of CuSn8 with Grease Reservoirs |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Name: | Solid Lube Bearings | Material: | Aluminum-Bronze With Solid Lubricant,CuSn5Pb5Zn5 |
|---|---|---|---|
| Model Number: | Cylinder Bearings,Cylinder Bearings With Flange | Feature: | Self Lubrication |
| Lubrication: | Graphite | Application: | Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. |
| Type: | VSB-50 | Max.speed V: | 10m/min |
| Highlight: | VSB-50 solid lube bearings,CuSn5Pb5Zn5 Solid Lubricating Bearings,10m/min Solid Lubricating Bearings |
||

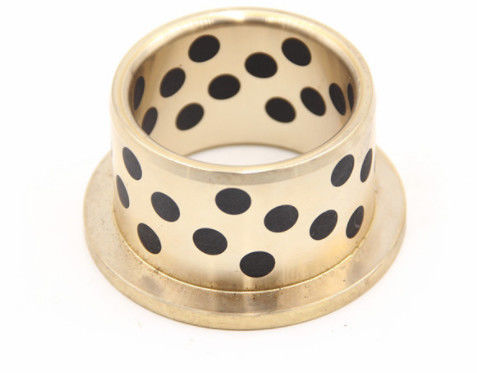

VSB-50 Solid Lubricating Bearings
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
VSB-50 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Performance |
Data |
| Material | CuSn5Pb5Zn5 |
| Density | 8.9g/cm³ |
| Hardness | >95HB |
| Tensile strength | >260N/mm² |
| Yeild strength | >150N/mm² |
| Elongation | >18 % |
| Coefficient of linear expansion | 1.8·10-5/℃ |
| Performance | Data |
| emp. Limits | -40~+400℃ |
| Max. Dynamic Load | 70N/mm² |
| Max.speed V | 10m/min |
| Max.PV | 80N/mm²*m/min |
| Besides the standard products displayed in the list of this catalogue, we can also supply non-standard products or develop according to customer design. | |

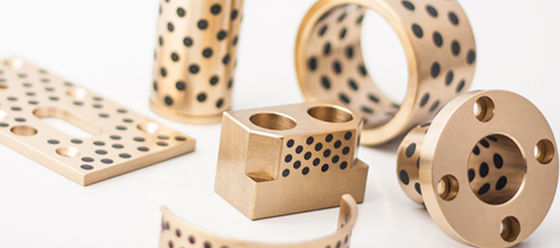

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.
