| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | SEA430B,C86300,DIN1709,FIBRO |
| Model Number: | Bronze Graphite plug Bushings met the tolerances |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Material: | Aluminum Copper With Solid Lubricant Plugs | Quaity: | OEM |
|---|---|---|---|
| Type: | Flange Bushings,Cylinder Bearings With Flange | Name: | Bronze Sleeve Bushing |
| Item: | Solid Lubricating Bearings | Market: | Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. |
| Application: | Metallurgy Industry, Mineral Machines | ||
| Highlight: | Metallurgy Industry Bronze Plain Bearings,VSB-50 Flange Bronze Plain Bearings,OEM Bronze Sleeve Bushing |
||
VSB-50 Flange Solid Bronze Metallic Self-lubricating Bearings
Copper Cast Bronze Bearings / Flanged Bronze Bearings

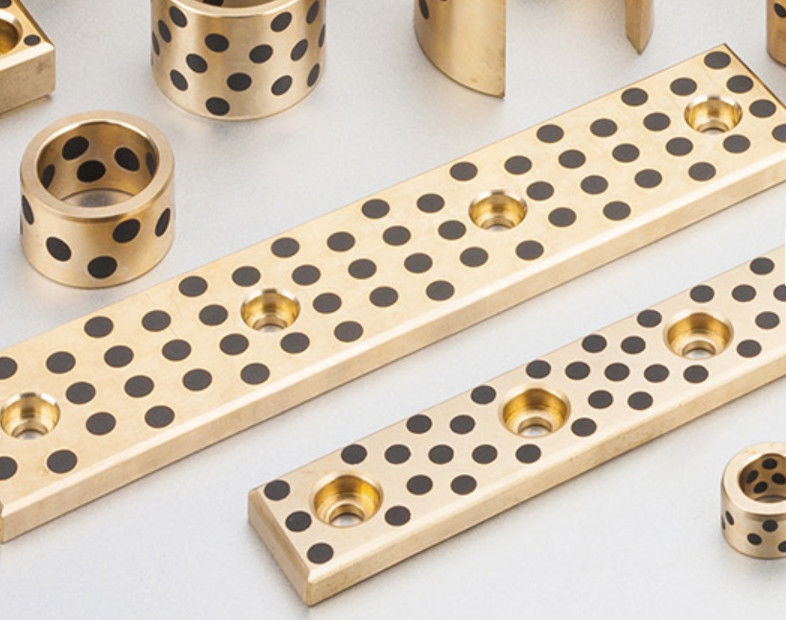

Cast Bronze Bearing with Graphite Plugs
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
VSB-50 Flange material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
|
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
|
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
|
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
|
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
|
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
|
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
|
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
|
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
|
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
|
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
|
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
|
Product NO. |
Chemical Compositions |
||||||||
|
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|

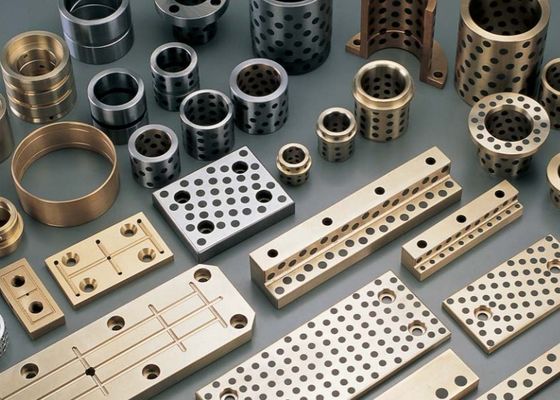

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
It is based on high strength copper alloy of special techniques. The solid lubricant is inlayed by certain angle, density and special formula, and then is processed exactly. The product is widely applied to casting machine, mining machinery, shipping, steam turbine, Injection machinery and automobile mounding, etc.
| Type | Spec. | Type | Spec. | |||
| FALNGE BEARING PLUG GRAPHITE | 810 | 20/12～8～10 | FALNGE BEARING PLUG GRAPHITE | 3520 | 60/45～35～20 | |
| FALNGE BEARING PLUG GRAPHITE | 815 | 20/12～8～15 | FALNGE BEARING PLUG GRAPHITE | 3525 | 60/45～35～25 | |
| FALNGE BEARING PLUG GRAPHITE | 1010 | 22/14～10～10 | FALNGE BEARING PLUG GRAPHITE | 3530 | 60/45～35～30 | |
| FALNGE BEARING PLUG GRAPHITE | 1012 | 22/14～10～12 | FALNGE BEARING PLUG GRAPHITE | 3535 | 60/45～35～35 | |
| FALNGE BEARING PLUG GRAPHITE | 1015 | 22/14～10～15 | FALNGE BEARING PLUG GRAPHITE | 3540 | 60/45～35～40 | |
| FALNGE BEARING PLUG GRAPHITE | 1020 | 22/14～10～20 | FALNGE BEARING PLUG GRAPHITE | 3550 | 60/45～35～50 | |
| FALNGE BEARING PLUG GRAPHITE | 1210 | 25/18～12～10 | FALNGE BEARING PLUG GRAPHITE | 4020 | 65/50～40～20 | |
| FALNGE BEARING PLUG GRAPHITE | 1215 | 25/18～12～15 | FALNGE BEARING PLUG GRAPHITE | 4025 | 65/50～40～25 | |
| FALNGE BEARING PLUG GRAPHITE | 1220 | 25/18～12～20 | FALNGE BEARING PLUG GRAPHITE | 4030 | 65/50～40～30 | |
| FALNGE BEARING PLUG GRAPHITE | 1225 | 25/18～12～25 | FALNGE BEARING PLUG GRAPHITE | 4035 | 65/50～40～35 | |
| FALNGE BEARING PLUG GRAPHITE | 1230 | 25/18～12～30 | FALNGE BEARING PLUG GRAPHITE | 4040 | 65/50～40～40 | |
| FALNGE BEARING PLUG GRAPHITE | 1315 | 26/19～13～15 | FALNGE BEARING PLUG GRAPHITE | 4050 | 65/50～40～50 | |
| FALNGE BEARING PLUG GRAPHITE | 1320 | 26/19～13～20 | FALNGE BEARING PLUG GRAPHITE | 4060 | 65/50～40～60 | |
| FALNGE BEARING PLUG GRAPHITE | 1410 | 27/20～14～10 | FALNGE BEARING PLUG GRAPHITE | 4530 | 70/55～45～30 | |
| FALNGE BEARING PLUG GRAPHITE | 1415 | 27/20～14～15 | FALNGE BEARING PLUG GRAPHITE | 4540 | 70/55～45～40 | |
| FALNGE BEARING PLUG GRAPHITE | 1420 | 27/20～14～20 | FALNGE BEARING PLUG GRAPHITE | 4550 | 70/55～45～50 | |
| FALNGE BEARING PLUG GRAPHITE | 1510 | 28/21～15～10 | FALNGE BEARING PLUG GRAPHITE | 4560 | 70/55～45～60 | |
| FALNGE BEARING PLUG GRAPHITE | 1515 | 28/21～15～15 | FALNGE BEARING PLUG GRAPHITE | 5030 | 75/60～50～30 | |
| FALNGE BEARING PLUG GRAPHITE | 1520 | 28/21～15～20 | FALNGE BEARING PLUG GRAPHITE | 5035 | 75/60～50～35 | |
| FALNGE BEARING PLUG GRAPHITE | 1525 | 28/21～15～25 | FALNGE BEARING PLUG GRAPHITE | 5040 | 75/60～50～40 | |
| FALNGE BEARING PLUG GRAPHITE | 1530 | 28/21～15～30 | FALNGE BEARING PLUG GRAPHITE | 5050 | 75/60～50～50 | |
| FALNGE BEARING PLUG GRAPHITE | 1615 | 29/22～16～15 | FALNGE BEARING PLUG GRAPHITE | 5060 | 75/60～50～60 | |
| FALNGE BEARING PLUG GRAPHITE | 1620 | 29/22～16～20 | FALNGE BEARING PLUG GRAPHITE | 5540 | 80/70～55～40 | |
| FALNGE BEARING PLUG GRAPHITE | 1625 | 29/22～16～25 | FALNGE BEARING PLUG GRAPHITE | 5560 | 80/70～55～60 | |
| FALNGE BEARING PLUG GRAPHITE | 1630 | 29/22～16～30 | FALNGE BEARING PLUG GRAPHITE | 6040 | 90/75～60～40 | |
| FALNGE BEARING PLUG GRAPHITE | 1635 | 29/22～16～35 | FALNGE BEARING PLUG GRAPHITE | 6060 | 90/75～60～60 | |
| FALNGE BEARING PLUG GRAPHITE | 1640 | 29/22～16～40 | FALNGE BEARING PLUG GRAPHITE | 6070 | 90/75～60～70 | |
| FALNGE BEARING PLUG GRAPHITE | 1820 | 32/24～18～20 | FALNGE BEARING PLUG GRAPHITE | 6540 | 95/80～65～40 | |
| FALNGE BEARING PLUG GRAPHITE | 1830 | 32/24～18～30 | FALNGE BEARING PLUG GRAPHITE | 6560 | 95/80～65～60 | |
| FALNGE BEARING PLUG GRAPHITE | 2015 | 40/30～20～15 | FALNGE BEARING PLUG GRAPHITE | 6580 | 95/80～65～80 | |
| FALNGE BEARING PLUG GRAPHITE | 2020 | 40/30～20～20 | FALNGE BEARING PLUG GRAPHITE | 7050 | 105/85～70～50 | |
| FALNGE BEARING PLUG GRAPHITE | 2025 | 40/30～20～25 | FALNGE BEARING PLUG GRAPHITE | 7080 | 105/85～70～80 | |
| FALNGE BEARING PLUG GRAPHITE | 2030 | 40/30～20～30 | FALNGE BEARING PLUG GRAPHITE | 7560 | 110/90～75～60 | |
| FALNGE BEARING PLUG GRAPHITE | 2035 | 40/30～20～35 | FALNGE BEARING PLUG GRAPHITE | 7580 | 110/90～75～80 | |
| FALNGE BEARING PLUG GRAPHITE | 2040 | 40/30～20～40 | FALNGE BEARING PLUG GRAPHITE | 8040 | 120/100～80～40 | |
| FALNGE BEARING PLUG GRAPHITE | 2515 | 45/35～25～15 | FALNGE BEARING PLUG GRAPHITE | 8060 | 120/100～80～60 | |
| FALNGE BEARING PLUG GRAPHITE | 2520 | 45/35～25～20 | FALNGE BEARING PLUG GRAPHITE | 8080 | 120/100～80～80 | |
| FALNGE BEARING PLUG GRAPHITE | 2525 | 45/35～25～25 | FALNGE BEARING PLUG GRAPHITE | 80100 | 120/100～80～100 | |
| FALNGE BEARING PLUG GRAPHITE | 2530 | 45/35～25～30 | FALNGE BEARING PLUG GRAPHITE | 9040 | 130/110～90～40 | |
| FALNGE BEARING PLUG GRAPHITE | 2535 | 45/35～25～35 | FALNGE BEARING PLUG GRAPHITE | 9060 | 130/110～90～60 | |
| FALNGE BEARING PLUG GRAPHITE | 2540 | 45/35～25～40 | FALNGE BEARING PLUG GRAPHITE | 9080 | 130/110～90～80 | |
| FALNGE BEARING PLUG GRAPHITE | 2550 | 45/35～25～50 | FALNGE BEARING PLUG GRAPHITE | 90100 | 130/110～90～100 | |
| FALNGE BEARING PLUG GRAPHITE | 3020 | 50/40～30～20 | FALNGE BEARING PLUG GRAPHITE | 10060 | 150/120～100～60 | |
| FALNGE BEARING PLUG GRAPHITE | 3025 | 50/40～30～25 | FALNGE BEARING PLUG GRAPHITE | 10080 | 150/120～100～80 | |
| FALNGE BEARING PLUG GRAPHITE | 3030 | 50/40～30～30 | FALNGE BEARING PLUG GRAPHITE | 100100 | 150/120～100～100 | |
| FALNGE BEARING PLUG GRAPHITE | 3035 | 50/40～30～35 | FALNGE BEARING PLUG GRAPHITE | 12060 | 170/140～120～60 | |
| FALNGE BEARING PLUG GRAPHITE | 3040 | 50/40～30～40 | FALNGE BEARING PLUG GRAPHITE | 12080 | 170/140～120～80 | |
| FALNGE BEARING PLUG GRAPHITE | 3050 | 50/40～30～50 | FALNGE BEARING PLUG GRAPHITE |
