| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | SEA430B,C86300,DIN1709,FIBRO |
| Model Number: | Bronze Graphite plug Bushings met the tolerances |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Name: | Oil Free Lubrication Bearing | Meterial: | Carton Steel, Bronze, PTFE |
|---|---|---|---|
| Plating: | Tin Or Copper | Characteristic: | Low-maintenance And Maintenance-free Plain Bearings |
| Type: | Bushes, Collar Bushes, Washers, Strips Or Special Designs | Size: | Standard Size Available |
| Quality: | OEM | ||
| High Light: | Anti Friction Metal Polymer Bearings,VSB-10 Metal Polymer Bearings,250N/mm² Metal Polymer Bearings |
||

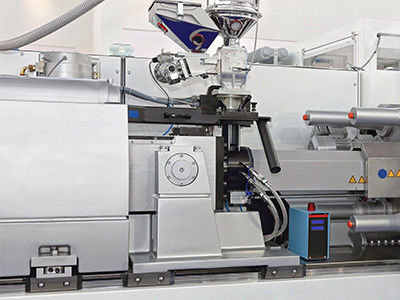

It Is With A Special Formulation Of High-Strength Bronze C86300/C86200 Or Copper Alloy With Good Casting And Dynamic, Corrosion-Resistance Properties. Its Surface Is Embeded With Self-Lubrication Graphite Arranged At Certain Angle And Density. It Is Typically Used In Injection Molding Machines, Mining Machinery, Heavy Duty Machinery, Bulldozer, Excavator, Auto Stamping Die, Plastic Mold, Preform Mold Etc.
1, no oil lubrication or less oil lubrication, can not be used for refueling or difficult to refuel the place, can be used in the maintenance or less maintenance.
2, wear resistance, friction coefficient, long service life.
3, there is the right amount of elastic-plastic, can stress distribution in a wide contact surface, improve the bearing bearing capacity.
4, static and dynamic friction coefficient is similar to the crawl at low speed to eliminate, so as to ensure the accuracy of mechanical work.
5, can reduce mechanical vibration, reduce noise, prevent pollution, improve working conditions.
6, in the course of operation can form a transfer film, play a role in protecting the grinding shaft, no bite axis phenomenon.
7, for the grinding shaft hardness requirements are low, not quenched and tempered shaft can be used, thereby reducing the processing of the relevant parts difficult.
ROLLED DRY SLIDING BEARINGS (PTFE)
Steel + Bronze Powder + PTFE/Fibre(DU)

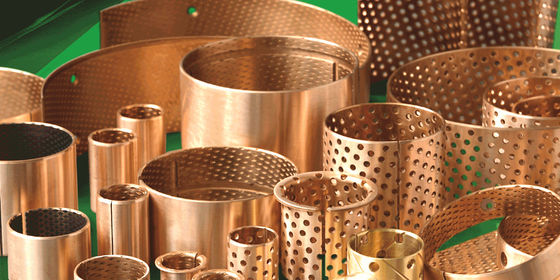

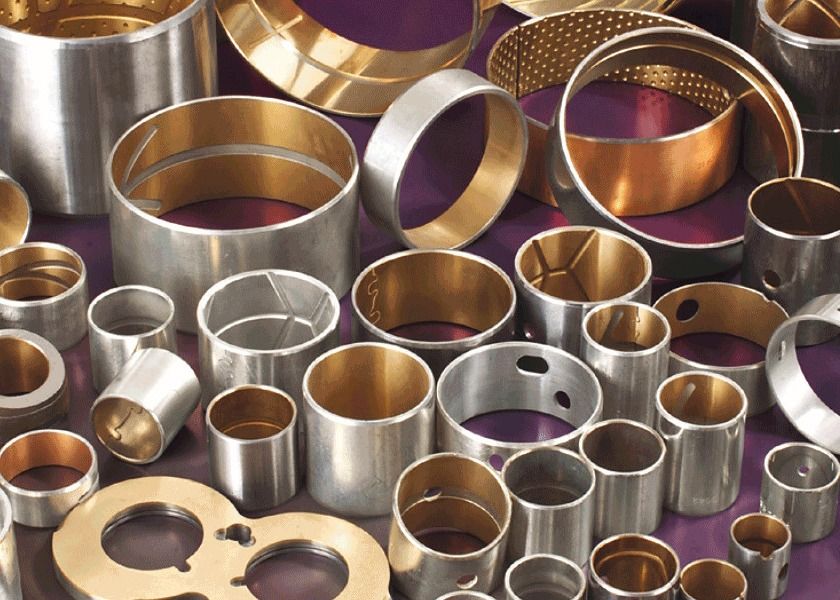

Wrapped PTFE Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with PTFE
Bushing material suitable for lubricated applications
self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
Anti-friction bearing suitable for linear, oscillating and rotating movements
Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.
1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.
· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· PTFE + Lead
|
OPERATING PERFORMANCE |
|
|
Dry |
Very Good |
|
Oil lubricated |
Good |
|
Grease lubricated |
Fair |
|
Water lubricated |
Fair |
|
Process fluid lubricated |
Fair |
|
Max. load |
Static |
250N/mm2 |
|
Dynamic |
140N/mm2 |
|
|
Max. speed |
Dry |
2m/s |
|
Lubrication |
>2m/s |
|
|
Max. PV (Dry) |
Short-time |
3.6N/mm2*·m/s |
|
Continuous |
1.8N/mm2*·m/s |
|
|
Temp. |
-195℃~+280℃ |
|
|
Friction coefficient |
0.03~0.20 |
|
|
Thermal conductivity |
42W (m·k)-1 |
|
|
Coefficient of thermal expansion |
11*10-6k-1 |
|
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings
Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
