Solid Lubricant Wear Resistant Cast Bronze Sleeve Bushings

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number:	LD Bronze Bearings made of CuSn8 with Grease Reservoirs

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Material:	Aluminum-Bronze With Solid Lubricant,CuSn5Pb5Zn5	Model Number:	Cylinder Bearings,Cylinder Bearings With Flange
Feature:	Self Lubrication	Lubrication:	Graphite
Application:	Injection Molding Of Plastics, Pressure Diecast Home > Application Fields > Injection Molding Of Plastics, Pressure Diecast
High Light:	Solid Lubricant Bronze Sleeve Bushings , Wear Resistant Bronze Sleeve Bushings , Cast Bronze Sleeve Bushings

Solid Lubricant Wear Resistant Cast Bronze Sleeve Bushings

Characteristics
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

Technical Data

Performance		Data
Material		CuSn5Pb5Zn5
Density		7.8g/cm³
Hardness		>150HB
Tensile strength		>600N/mm²
Yeild strength		>260N/mm²
Elongation		>10 %
Coefficient of linear expansion		1.6·10-5/℃

Performance		Data
emp. Limits		-40~+400℃
Max. Dynamic Load		50N/mm²
Max.speed V		20m/min
Max.PV		60N/mm²*m/min
Besides the standard products displayed in the list of this catalogue, we can also supply non-standard products or develop according to customer design.

Availability

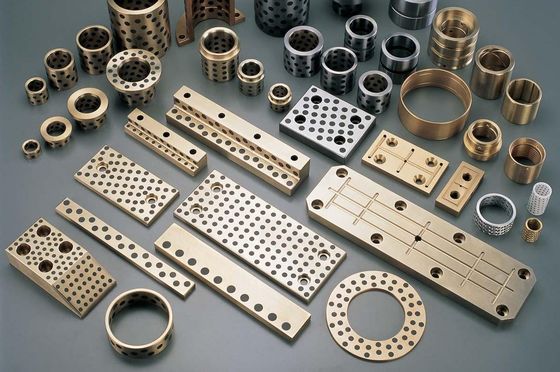

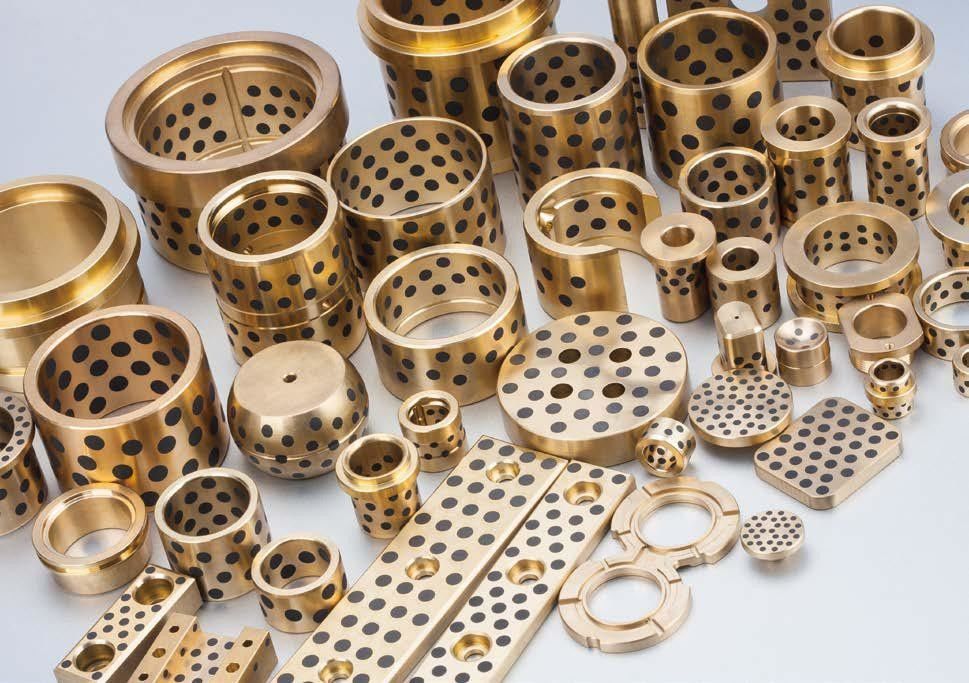

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Typical Applications

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
