| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO9001 |
| Model Number: | SF-1S |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Lubricating: | Self Lubricating | Surface Treatment: | Copper Plating Or Tin Plating |
|---|---|---|---|
| Customized: | Based On Drawing Or Samples | Application: | Gear Pump, Ram Pump, Vane Pumps |
| Type: | Sliding, Sleeve,Flange,thrust Washer,slide Plate,Customized | Type Of Lubricant: | Solid-Lubricated Bearing |
| Material Structure: | Stainless Steel+copper Powder+(PTFE+Pb) Mixture | Product Name: | Self-lubricating Composite Sliding Material With Stainless Steel Backing |
| High Light: | SF-1S Self Lubricating Sleeve Bearings,140N/mm² Self Lubricating Sleeve Bearings,2.5m/s Self Lubricating Sleeve Bearings |
||

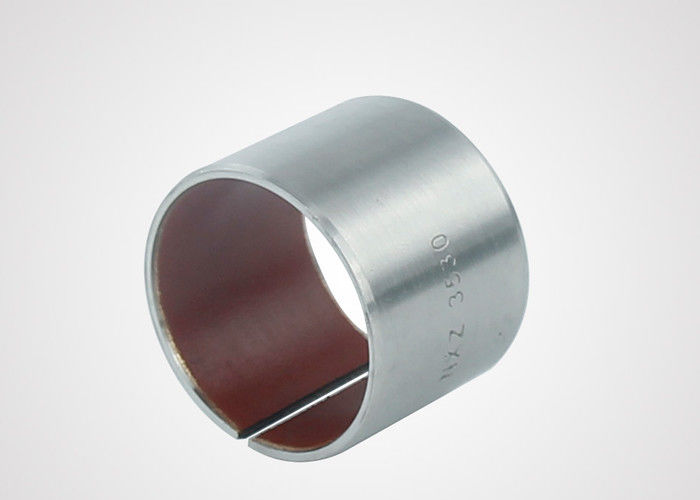

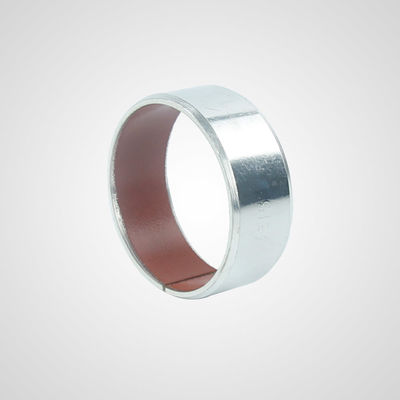

SF-1S 2.5m/S 140N/Mm² Self Lubricating Sleeve Bearings
SF-1S is of oil resistant,acid resistant, alkali resistant and seawater resistant,more over,there is no lead in the PTFE surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.
Load capacity: 140N/mm2
Temperature: -195~+280°C
Speed limit: 2.5m/s
Friction coef(μ): 0.04~0.20
PV limit(dry): 3.6N/mm2 .m/s
PV limit(oil): 50N/mm2 .m/s
| Performance index | Data | |
| Max Load Capacity | Static load | 250N/mm2 |
| Dynamic load | 140N/mm2 | |
| Max Sliding Speed | Dry friction | 2.5m/s |
| Oil lubrication | 5.0m/s | |
| Max PV Value Limit | Dry friction | 3.8N/mm2·m/s |
| Oil lubrication | 50N/mm2·m/s | |
| Friction coefficient | 0.04~0.20 | |
| Working temperature | -195℃~+280℃ | |
| Thermal conductivity | 50W/m·K | |
