| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | Bushing Standards Met: 83-7-7-3, ASTM B505, CDA 932, SAE 660 |
| Model Number: | Sleeve bearing type: |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Name: | Cast Bronze Bushings | Material: | Fe, Cu9010, Cu663, (C, Sn, Zn) |
|---|---|---|---|
| Type: | Sleeve, Flange,ring,split,Bushings | Max Density: | 6.0 G/cm2~6.4 G/cm2 |
| Application: | Metal Sintered Fan Bushing | Sliding Speed: | 2.0m/s |
| Working Temperature: | -100~+200 Degrees Celsius | ||
| High Light: | Precision Machining Sintered Bronze Bearings,2.0m/s Sintered Bronze Bearings,120N/Mm² Sintered Bronze Bearings |
||

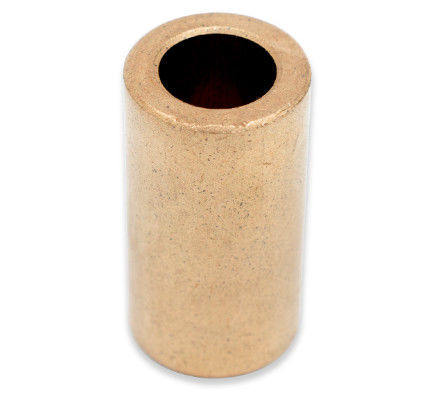

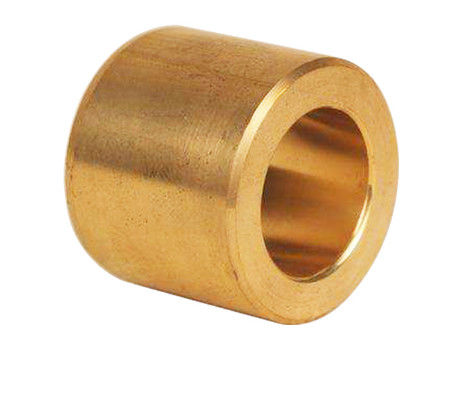

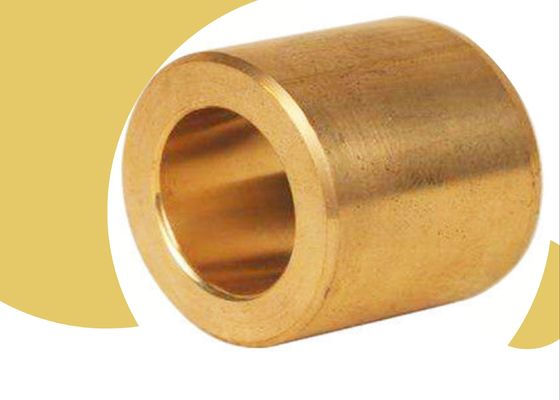

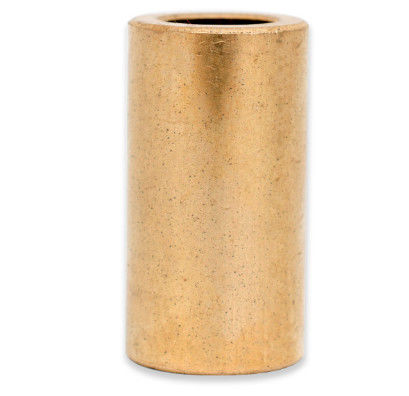

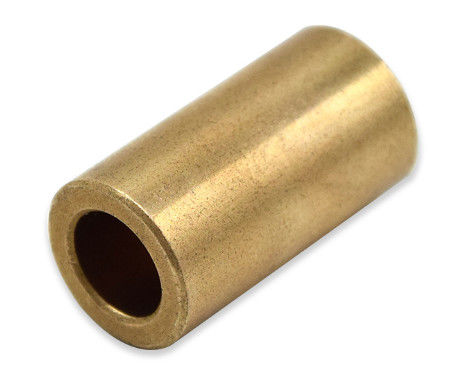

Precision Machining 120N/Mm² Sintered Bronze Bearings
Product Description
Sinterbronze are manufactured by sintering pressed tin bronze powder. The manufacturing process includes calibration of tolerances and impregnation of oil in the bearings. This method generates a self-lubricating slidebearing with good mechanical properties. Sinterbronze bearings are an excellent universal bearing which is well suited for structures with high speeds and low to medium loads. A cost-effective plain or flanged bearing with long life and multipurpose use.
Stable supply 3d printer powder alloy oil impregnated bronze bushing
|
Product Name |
Bushing Bronze |
|
Material Details |
Fe, Cu9010, Cu663, (C, Sn, Zn) |
|
Max Density |
6.0 g/cm2~6.4 g/cm2 |
|
Load Capacity |
Static load 120N/mm2 ; Dynamic load 40N/mm2 |
|
Sliding Speed |
2.0m/s |
|
PV Value Limit |
2.8N/mm2·m/s |
|
Friction Coefficient |
0.05~0.22 |
|
General Tolerance |
ISO -2768 ; GB/T 1800.3-1995 |
|
Working Temperature |
-100~+200 Degrees Celsius |
|
Application |
Domestic electric, Electronic machine, Official business machines, Automobiles |
Typical Application
domestic electric and electronic machines, electric tools, textile machines, chemical engineering machines, automobiles and official business machines,etc
