Name: Oil Free Self Lubricating Plain Bearing
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
SKU: EX, PAF, PAP, SF-1, TUP1, EU
Availability: InStock

Home Products Self Lubricating Plain Bearing

Oil Free Self Lubricating Plain Bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO 9001
Model Number:	EX, PAF, PAP, SF-1, TUP1, EU

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Bushing Type:	EX, PAF, PAP, SF-1, TUP1, EU	Self-lubricating:	BEARINGS & FLANGE THRUST WASHER
Type:	Self Lubricating Plain Bearings	Material:	PTFE
Working Temperature:	-200~+280℃	Thermal Conductivity:	60W/(m·k)
Highlight:	60W/(m·k) Self Lubricating Plain Bearing , 280℃ Self Lubricating Plain Bearing , PAF Self Lubricating Plain Bearing

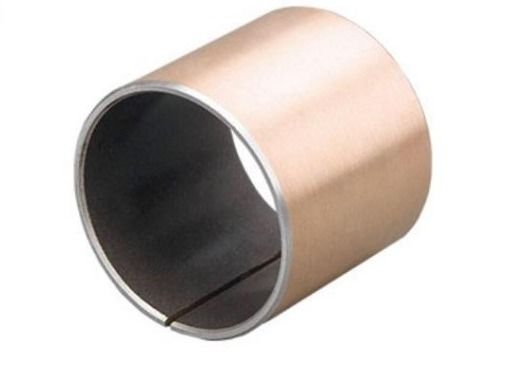

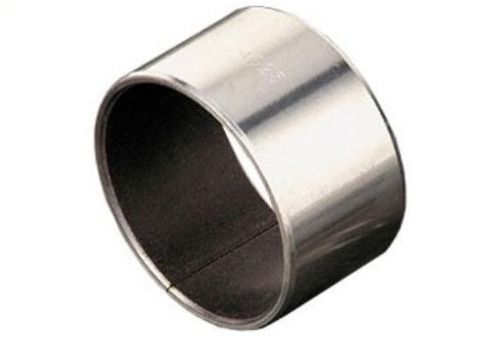

Oil Free Self Lubricating Plain Bearing

Self Lubricating Plain Bearing

Oil-free self-lubricating dry bearing ptfe wear-resistant composite bushing copper bushing guide sleeve bearing EX, PAF, PAP, SF-1, TUP1, EU Standard Metric Size & Inch Dimensions

BUSHING consisting of a strip of steel with a BRONZE coating with a modified PTFE composite, a non-lubricating material. Application, construction and properties.

These applications are frequently found in the following sectors:

Steelworks
Naval Construction
Off-on shore
Lifting, hoists and winches
Power transmission, gearboxes
Hydromechanical equipment and mobile structures
Public Works, mining and tunnelling machinery
Valves
Pumps
Hydroelectric power generation
Wind power generation
Solar power generation

Product Description

Material: Steel Back + Porous Bronze Sinter +PTFE

Product Type:

Self Lubricating Plain Bearings

Material:

Bronze+Bronze +PTFE

Application :

Metallurgical industry, continuous casting and rolling mill, concrete machinery and spiral conveyers, etc.

Load capacity P(Dry friction):

Static load 250N/mm² / Dynamic load 140N/mm²/ Oscoillation load 60N/mm²

Max line speed V:

Dry friction 2.5m/s / Oil lubrication >5m/s

PV value limit:

Dry friction 1.8N/mm²· m/s / Oil lubrication 3.6N/mm²· m/s

Friction coef u:

Dry friction 0.08~0.20 /Oil lubrication 0.02~0.12

Mating Axis:

Hardness >220HB / Roughness Ra=0.4~1.25

Working Temperature:

-200~+280℃

Thermal conductivity:

60W/(m·k)

Coefficient of linear expansion:

18x10-6/K

In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.

Technical Data

GENERAL

Unit

Value

Maximum load, p

Static

Dynamic

N/mm2

250

140

Operating temperature

Min

Max

°C

- 200

280

Coefficient of linear thermal expansion

Parallel to the surface

Normal to the surface

10-6/K

Features

PVB010 self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
Bushing material suitable for lubricated applications
Anti-friction bearing suitable for linear, oscillating and rotating movements
Good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
Very good performance in lubricated applications
Good performance in greased applications
Suitable for linear, oscillating and rotating movements
