Manganese Bronze Sleeve Bushings

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number:	LD Bronze Bearings made of CuSn8 with Grease Reservoirs

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Name:	Bronze Sleeve Bushings	Material:	CuZn25AI5Mn4Fe3
Model Number:	Cylinder Bearings With Flange	Feature:	Self Lubrication
Lubrication:	Graphite	Application:	Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Type:	FLANGE/SLEEVE/WASHER
Highlight:	Manganese Bronze Sleeve Bushings , Self Lubricating Bronze Sleeve Bushings , CuSn8 Bronze Sleeve Bushings

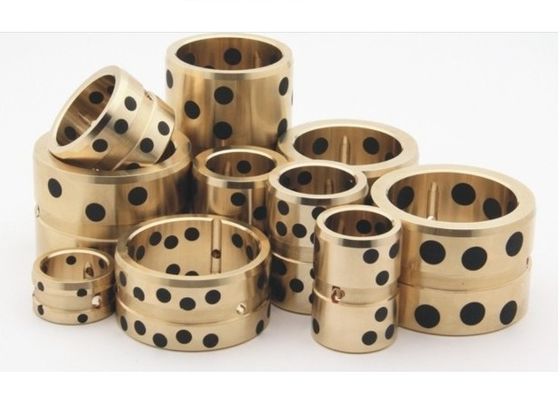

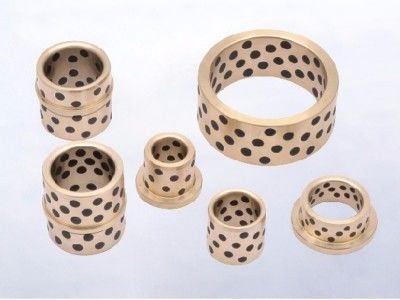

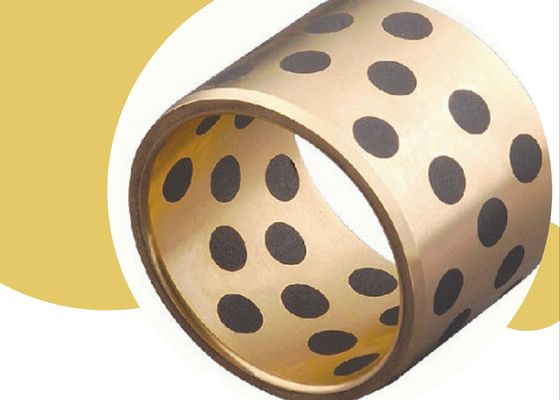

Manganese Bronze Sleeve Bushings

Name: Manganese Bronze Sleeve Bushings
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
SKU: LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Availability: InStock

We offer a broad range of bronze alloy materials beyond our cast bronze (C932 / SAE 660) Bushing and manganese bronze (C863 SAE430B) bearings. A few of the other bronze alloys offered include high leaded tin bronze bearing & Flange Bushing, aluminum bronze (C954) Bearing and Thrust Washer.

Metal Manganese bronze Sleeve bushings.It is now widely applied in successive casting machines, mineral machine, ships, turbogenerators, hydraulic turbines and injection molding machines etc.

This product is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide for self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed.

Typical application: automotive products line, water engineering, dam gate, plastic industries, successive casting machine, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines．

Material

CuZn25AI5Mn4Fe3

Structure Characteristics and Applications

Bronze Sleeve Bushings is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Characteristics

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

Technical Data

Grade	50#	50S1	50S2	50S3	650S5
Material	CuZn25AI5Mn4Fe3	CuSn5Pb5Zn5	CuAI10Ni5Fe5	CuSn12	CuZn25AI5Mn4Fe3
Density	8	8.9	7.8	8.9	8
Hardness	≥210	≥70	≥150	≥75	≥235
Tensile strength	≥750	≥250	≥500	≥270	≥800
Yield strength	≥450	≥90	≥260	≥150	≥450
Elongation	≥12	≥13	≥10	≥5	≥8
Coefficient o linear expansion	1.9×10-5/℃	1.8×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.9×10-5/℃
Max.Temp.	-40~+300℃	-40~+400℃	-40~+400℃	-40~+400℃	-40~+300℃
Max.dynamic load	100	60	50	70	120
Max.speed(Dry)	15	10	20	10	15
N/mm²*m/s(Lubrication)	200	60	60	80	200
Compression deformation	< 0.01 mm	< 0.05mm	< 0.04mm	< 0.05mm	< 0.005mm

Availability

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Typical Applications

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
