Name: Maintenance Free Thermoplastic Plastic Sliding Bearing
Brand: OEM
SKU: Plastic Bearings

Maintenance Free Thermoplastic Plastic Sliding Bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	CUSN8,CUSN6.5 Bronze
Model Number:	Plastic Bearings

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Name:	Self Lubricating Plastic Bearings	Material:	Thermoplastic Plastic
Size:	Customized	Type:	Plastic Plain Bearings
Application:	Packaging Machinery	Certified:	CUSN8,CUSN6.5 Bronze
High Light:	CUSN8 Plastic Sliding Bearing , Thermoplastic Plastic Sliding Bearing , Self Lubricating Plastic Bearings

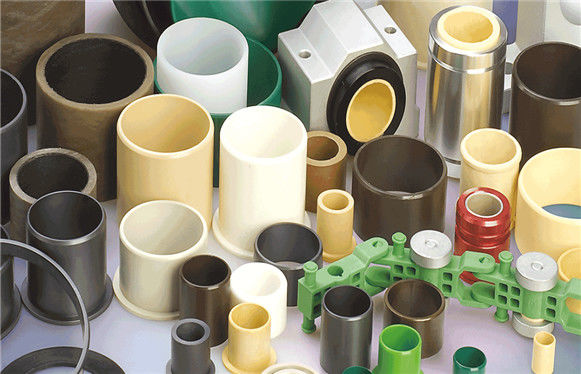

Plastic Plain Bearings

Thermoplastic plastic sliding bearing, plastic, Maintenance-free, Compound plastic produced by injection-molding.

Plastic Plain Bearings Metric Cylindrical Bushes & Flange Bearings made to order from china.

Bearings Black Lubricating Bushes h9 H7 tolerances.Such bearings are most widely applied as self-lubricating plastic bearings;

Characteristics

This series material is a thermal mould character plastic processed by crystal engineering plastic as basic material with proper intensifier and lubricant. The rigidity and high temperature engineer capability is greatly improved because of the use of intensifier, at the same time, the coefficient of thermal expansion, moulding shrinking rate and wriggle capability decreases, consequently, the size stability is improved, and series material range is enlarged and keeps the intrinsic anti-wear capability and anti-drug capability.

Typical Applications

· Office Machinery
· Electronic Products
· Textile Machinery
· Fitness Machinery
· Agricultural Machinery
· Packaging Machinery
· Automotive Industry

Solid lubricating and Maintenancefree Sliding Bearings

Plastic bearing has longe service vs Metal bearing lubricating oil is life easy to be failed

Engineers are dedicated on the performance improvement on the self- lubricating materials derives the result that EP Series Materials are with excellent self- lubricating features and wear resistance Features. High- strength fibers used in the engineering plastics fantastically improve the material load (Graphl). Special grease immersion in the plastic can decrease the friction coefficient of the material therefore to proiong the bearing sevice life. High-performance engineering plastics body material mainly service as wear- resistant vector. The reinfoced fiber improves the load and impact resistant capacity of the beaing. Special grease decreases the fiction coefficient for a better selflubricating performance.

Material property sheet

Common Capability	Unit	EPT	EPG	EPH	EPX	EPJ	EPS
Density	g/cm³	1.46	1.46	1.65		1.49	1.24
Color		Black gray	Dark grey	Grey	Black	Yellow	Beige
Max.water absorption,23℃/ 50%	[% weight]	0.2	0.7	0.1		0.3	2.02
Max.water absorption	[% weight]	＜1.2	＜4	＜0.3	＜0.5	＜1.3	＜0.1
Dynamic friction /steel	μ	0.05-0.15	0.08-0.18	0.07-0.20	0.09-0.27	0.06-0.18	0.05-0.15
Max.PV(dry)	MPa•m/s	0.4	0.5	1.37	1.32	0.34	0.4
Mechanical behavior
E-module	MPa	2,300	7,800	12,500	8,100	2,400	830
Tensile strength,20℃	MPa	80	200	175	170	73	18
Compressive strength	MPa	65	80	90	150	35	10
Max.static pressure of the surface,20℃	MPa	35	80	150	90	20	10
Shore D hardness		70	112	87	85	74	73
Physical and thermal properties
Continuous work tempreature	℃	+80	+130	+200	+250	+90	+260
short-time work tempreature	℃	+120	+220	+240	+315	+120	+310
Minimum operating temperature	℃	-40	-40	-40	-100	-50	-200
Thermal conductivity	W/m•K	0.2	0.25	0.60	0.60	0.25	0.24
Max.water absorption,23℃	K-1•10-5	7	9	4	5	10	12
Conductivity
Volume resisticity	Ωcm	＞1012	＞1013	＜104	＜105	＞1013	＞1015
Surface resisticity	Ω	＞1015	＞1011	＜105	＜103	＞1012	＞1015
