Name: High Temperature 3.2g/Cm3 Si3N4 Full Ceramic Bearings
Brand: OEM

High Temperature 3.2g/Cm3 Si3N4 Full Ceramic Bearings

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO 16949

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Material:	Si3N4	Density:	3.2g/cm3
Material Of Rings & Balls:	Full Si3N4 Ceramic Material	HV Hardness:	1700 HRC
Coefficient Of Expansion:	3.20 10^-6/℃	The Highest Temperature:	1000℃
High Light:	3.2g/cm3 Full Ceramic Bearings , 1000℃ Full Ceramic Bearings , Si3N4 Full Ceramic Bearings

High Temperature 3.2g/Cm3 Si3N4 Full Ceramic Bearings

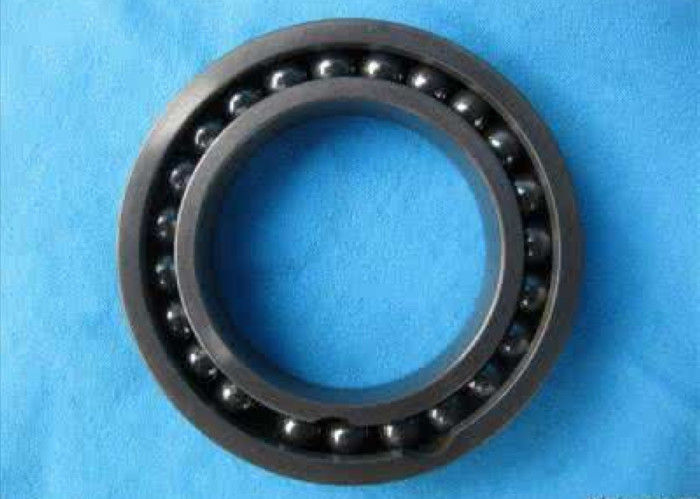

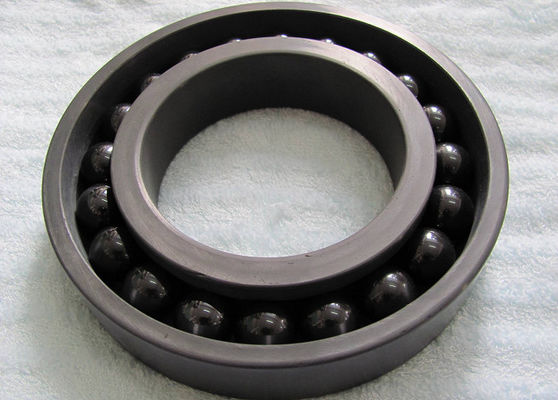

Full Ceramic Bearings of full complement balls of Si3N4 material has an add-ball gap on its side. Because using no cage design, Full Complement Balls Of Si3N4 Ceramic Bearings is able to install more ceramic balls than the standard construction, so the heavier radial load ability could be increased more. In addition, to avoid the limited of the cage material, Full Complement Balls Of Si3N4 Ceramic Bearings has more corrosion resistance and higher temperature application than the full ceramic bearing of ceramic cage. This series of Full Complement Balls Of Si3N4 Ceramic Bearings is not for high-speed circumgyration, so the side with gap shouldn’t be installed on enduring axial load side. As there are add-balls gaps in the inner and outer rings, Full Complement Balls Of Si3N4 Ceramic Bearings couldn’t be used in more axial load application. The highest temperature of recommendation is 1000℃.

Comparison of bearing material technical data
Technical data	unit	GCr15	9Cr18	Si3N4	AL203	ZrO2
Density	g/cm³	7.8	7.9	3.2	3.95	6
a Coefficient of expansion	10^-6/℃	11	17	3.2	9.1	10.5
E modulus of elasticity	Gpa	208	200	320	380	210
μ Poisson ratio		0.3	0.3	0.26	0.27	0.3
HV Hardness		800	700	1700	1800	1300
δ Flexural strength	Mpa	2400	2600	900	220	1000
δ Compressive Strength	MPa			2000	1500	3500
Kc Impact strength	Nm/cm²	20	25	7	3.5	11
λ Thermal conductivity	W/mk	30-40	15	3.5	25	2.5
Ω Specific resistivity	mm²/m	1	0.75	10^18	10^8	10^5
Specific heat	J/KgK	450	450	800	880	400
Application temperature	℃	120	150	1000	1850	800
Anti-corrossion		No	poor	Good	Good	Good
Cycle stress		10*10^6	10*10^6	50*10^6	30*10^6	50*10^6
Destroy model		peel	peel	peel	fracture	peel/fracture
Anti-magnetism		Yes	Yes	No	No	No
Dimension stability		bad	poor	Good	Good	Good
Insulate properties		No insulation	No insulation	Good	Good	Good

Basic properties of staple engineer plastic
Material	HDPE	PP	POM	PA66	PVDF	PPS	PTFE	PEEK
Long-time working temp.	90	100	110	100	150	230	260	280
Density	g/cm3	0.91	1.42	1.14	1.77	1.35	2.18	1.32
Ball indentation hardness	50	80	170	170	80	190	30
Tensile stress	25	30	70	80	50	75	25	95
Sliding friction coefficient	0.29	0.3	0.34	0.35-0.42	0.3		0.08-0.1	0.3-0.38
Melted temperature	130	165	175	260	172	280	327	343
Short-time highest application temperature	90	140	150	170	150	260	260	300
Coet of Inear expansion (10^-5/K)	13-15	17	10	8	13	5	12	5
Dielectric constant at 1 Mhz(10^6HZ)	2.4	2.25	3.7	3.6-5	8		2.1	3.2-3.3
Volume resisrivity (Ω·cm)	>10^15	>10^24	>10^14	10^13	10^12	>10^13	10^14	10^13
flammability UL94	+	+	-	(+)	(+)	-	+	+
Anti-weathering	-	-	-	-	-	-	+	-
Note: + =resistant; (+) =partly resistant; - =non-resistant
