| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | Bushing Standards Met: 83-7-7-3, ASTM B505, CDA 932, SAE 660 |
| Model Number: | Sleeve bearing type: |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Name: | Sintered Bronze Bearings | Material: | Fe, Cu9010, Cu663, (C, Sn, Zn) |
|---|---|---|---|
| Type: | Sleeve, Flange,ring,split,Bushings | Max Density: | 6.0 G/cm²~6.4 G/cm² |
| Application: | Domestic Electric, Electronic Machine | Sliding Speed: | 2.0m/s |
| Friction Coefficient: | 0.05~0.22 | ||
| High Light: | 2.0m/s Cast Bronze Bushings,6.4 g/cm² Cast Bronze Bushings,Copper Cast Bronze Bushings |
||

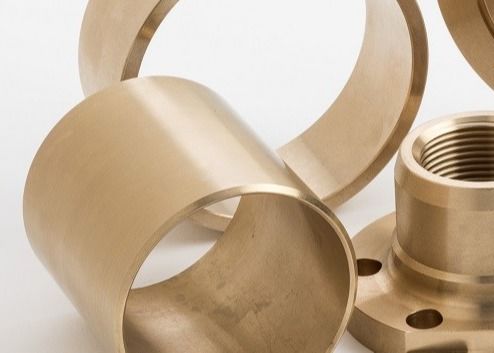

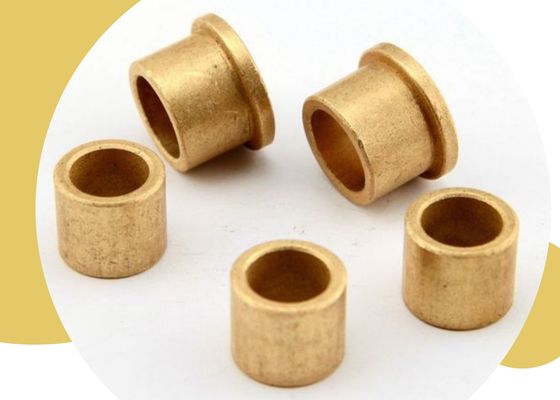

High Precision Copper Cast Bronze Bushings For Electronic Machine
Product Description
Sinter bronze are manufactured by sintering pressed tin bronze powder. The manufacturing process includes calibration of tolerances and impregnation of oil in the bearings. This method generates a self-lubricating slidebearing with good mechanical properties. Sinterbronze bearings are an excellent universal bearing which is well suited for structures with high speeds and low to medium loads. A cost-effective plain or flanged bearing with long life and multipurpose use.
|
Product Name |
Copper Sintered Bushing |
|
Meterial Details |
Fe, Cu9010, Cu663, (C, Sn, Zn) |
|
Max Density |
6.0 g/cm2~6.4 g/cm2 |
|
Load Capacity |
Static load 120N/mm2 ; Dynamic load 40N/mm2 |
|
Sliding Speed |
2.0m/s |
|
PV Value Limit |
2.8N/mm2·m/s |
|
Friction Coefficient |
0.05~0.22 |
|
General Tolerance |
ISO -2768 ; GB/T 1800.3-1995 |
|
Working Temperature |
-100~+200 Degrees Celsius |
|
Application |
Domestic electric, Electronic machine, Official business machines, Automobiles |
|
Products Details |
|
|
Inner Diameter |
11.5 mm |
|
Outer Diameter |
15.1 mm |
|
Flange Diameter |
18 mm |
|
Flange Thickness |
1.6 mm |
|
Total Length |
15 mm |
|
Weight |
8.36 g |
|
Material |
copper powder |
