| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | CUSN8,CUSN6.5 Bronze |
| Model Number: | PTFE PLAIN BEARINGS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Material: | EPB A Thermal Mould Character Plastic | Application: | Packaging Machinery，Industry, Aviation, Machinery, Engineering Hydraulic Cylinders, Precision |
|---|---|---|---|
| Bushes: | IGUS Replace，plain Bearing Bush，sleeve Type Bearing | Quality: | OEM Customized Services, Prompt Delivery, Buyer Label Offered, Good Service Offered, OEM |
| Feature: | High Temperature Resistance, Low Resistance | Packing: | Carton，Box |
| High Light: | Cylindrical Plastic Plain Bearings,OEM Plastic Plain Bearings,130℃ Plastic Plain Bearings |
||
High-performance for plastic bearings & bushings. Cost down Prices.The range of plain bearings includes sleeve bearings, flange bearings, thrust washers, piston rings, clamp plain bearings and many other designs.
Sliding bearings are suitable for automatic mass production, special machine manufacturing, underwater applications, food or tobacco industry, extreme temperature and chemical resistance, and simple metal plate installation.
Plastic Plain Bearings Extend Service Life & Reduce Costs by 30~40% plain bearings are available in a wide range of standard catalog options, and customization.Plastic Plain Bearings Plastic Plain Bearings Cylindrical Flange Bushing Thrust Washer A promise tomorrow is worth a lot less than trying today.
VIIPLUS in Chinese reliable tribology, VIIPLUS offers surface engineering expertise to the world in motion for plain bearings and self-lubricating bushings by reducing friction loss.

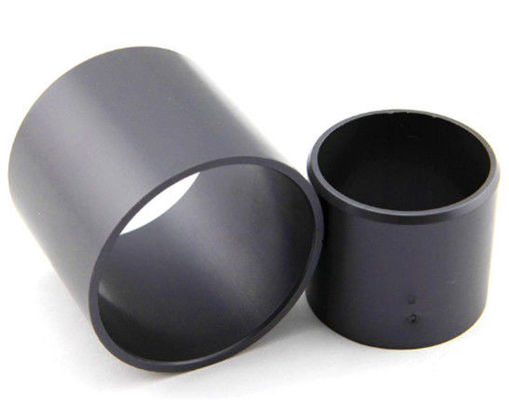

Plastic Plain Bearings
The Material Data Sheet
|
Material Properties |
Standard |
Unit |
EPB3 |
|
Density |
ISO1183 |
g/cm3 |
1.46 |
|
color |
|
|
Dark Grey |
|
Max. moisture absorption at +23℃ /RH50% |
ASTMD570 |
% |
0.7 |
|
MAX. water absorption |
|
% |
4.0 |
|
Dynamic friction /steel(dry) |
|
|
0.08-0.18 |
|
MAX.PV(dry) |
|
N/mm2×m/s |
0.5 |
|
Flexural modulus |
ISO178 |
MPa |
7700 |
|
Flexural strength at +23℃ |
ISO178 |
MPa |
200 |
|
Compressive strength |
|
MPa |
80 |
|
MAX.static pressure of the surface,+20℃ |
|
MPa |
80 |
|
Shore hardness |
ISO868 |
D |
81 |
|
Continuous work temperature |
|
℃ |
-40/+130 |
|
Short-time work temperature |
|
℃ |
-40/+220 |
|
Thermal conductivity |
ASTME1461 |
W/m*k |
0.25 |
|
Linear coef. of thermal expansion at +23℃ |
ASTMD696 |
K-1×10-5 |
9 |
|
Flammability |
UL94 |
|
HB |
|
Volume resistivity |
IEC60093 |
Ωcm |
1×1013 |
|
Surface resistivity |
IEC60093 |
Ω |
1×1011 |
· Office Machinery
· Electronic Products
· Textile Machinery
· Fitness Machinery
· Agricultural Machinery
· Packaging Machinery
· Automotive Industry
