| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | DIN 1494, ISO 3547 |
| Model Number: | Wrapped Bronze Bearings_Products |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Name: | Bronze Plain Bearings | Material: | Bronze CuZn33 |
|---|---|---|---|
| Size: | Customized Size | Feature: | Lubricating Grooves Or Sockets |
| Lubricating: | Good Anti-Erosion,Good Load Capacity | ||
| High Light: | CuZn32 Bronze Sleeve Bushings,High Load Capacity Bronze Sleeve Bushings,DIN 1494 Bronze Sleeve Bushings |
||
Bronze sleeve bushing made to order from china factory 092 sliding bearings can take lubrication with all types of greases ormixes. This enables longer lubrication intervals. Unlike the solid bronze sliding bearings, the BRONZE SLEEVE BUSHES 092 sliding bearings have all advantages of theBUSHINGS BEARINGS 090 sliding bearings, which are summarised as follows:

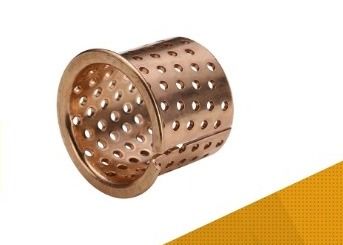

The surface of the CUSN8/CUSN6 BRONZE SLEEVE BUSHES FLANGE- 092 sliding bearings must be reduced by 15%, taking into account the holes. The CUSN8/CUSN6 BRONZE SLEEVE BUSHES FLANGE - 092 series is available as cylindrical sliding bearings, flanged sliding bearings, thrust bearing washers and customised panels. Compared to the CUSN8/CUSN6 BRONZE SLEEVE BUSHES FLANGE - 090 range, the CUSN8/CUSN6 BRONZE SLEEVE BUSHES FLANGE - 092 sliding bearings allow longer re-lubrication intervals, which can be seen from the diagram below. With regards to the dimension development and all other defined properties of these sliding bearings, the same rules as for the CUSN8/CUSN6 BRONZE SLEEVE BUSHES FLANGE - 090 apply in terms of lubrication and play.
• High load capacity
• Minimal space requirement
• Very good resistance to chemical corrosive agents
• Very good thermal conduction capacity
• Simple installation and maintenance
Tribology Bushing & Sliding Bearings.Design Resources Tribological Grooves or Sockets Bronze Sleeve Bushings with Lubricating made to order from china,Tribology is the science of friction, wear and lubrication between moving surfaces.Material technology and material surface engineering play a key role in solving friction problems.Providing China High Performance Bearing Solutions for Automotive and General Industries
Design Bushings VIIPLUS can not only manufacture copper alloy sleeve bushes according to China's national standard, but also can produce it as the related standards of the ASTM(UNS,SAE), EU and JIS, etc.What's more,we can also develop the copper alloy material according to the special requirements and drawings of customers.

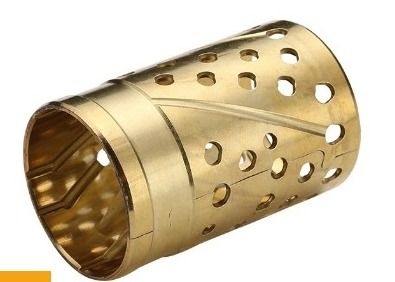

Bronze Sleeve Bushings 091 is a CuZn32 copper alloy based product. In order to improve tribological behavior the sliding layer can be applied with lubricating grooves or sockets for oil- or grease
storage and distribution. It shows a good anti-erosion behavior as well as a good load capacity. Products of bronze sleeve bushes 091 series are applied under operating conditions such as high loads and low running speeds, for example in agricultural- and construction machines.
Symbol: CuZn32 Category:EN Casting Copper Alloy Type:Special Brass
|
Chemical Composition mass/% |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Cu |
Sn |
Al |
Fe |
Mn |
Ni |
Pb |
Si |
P |
Zn |
|
59.0-67.0 |
1 |
1.0-2.5 |
0.5-2.0 |
1.0-3.5 |
2.5 |
1.5 |
1 |
- |
Rem |
|
Mechanical properties |
|||
|---|---|---|---|
|
Tensile strength Mpa(Min) |
Yield strength MPa(Min) |
Elongation % |
Brinell hardness(HB) |
|
430 |
150 |
10 |
100 |
1, In Chemical Composition, Single values represent maximums.
2, Mechanical performance of hardness value is only for reference
