| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO9001:2008 CuSn8, CuSn6.5, Brass |
| Model Number: | LD Bronze Bearings made of CuSn8 with Grease Reservoirs |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Name: | Aluminum Bronze Bushings | Type: | CAST BRONZE |
|---|---|---|---|
| Sliding Bearings: | Maintenance-free | Material: | C95500 Aluminum Bronze |
| Code: | Self-lubricating Bushings | ||
| High Light: | C95500 Self Lubricating Bronze Bushings,High Durability Aluminum Bronze Bushings,C95500 Aluminum Bronze Bushings |
||

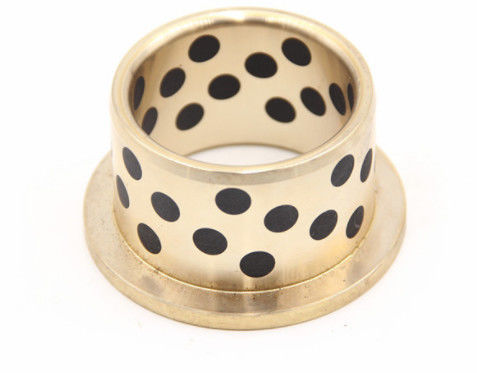

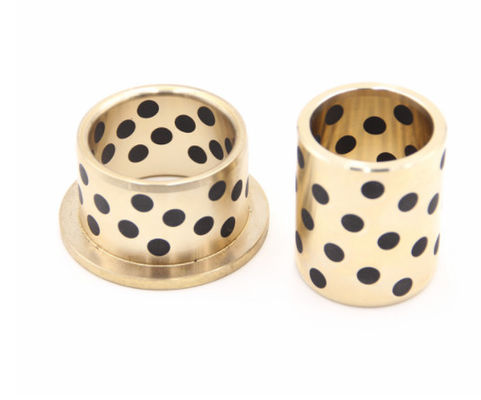

High Durability C95500 Self Lubricating Aluminum Bronze Bushings
Feature
1. It can work without oil for long time
2. High load capacity
3. Inner Diameter machineable parts are available against order
4. High level thermal conductivity
5. Minimum overall dimensions
6. Good chemical resistance and anti-corrosion

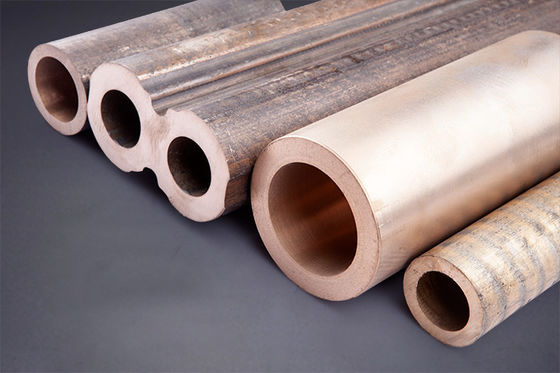

Aluminum bronze is the highest strength standard copper based alloy. VIIPLUS produces C95400, C95500 and C95900 in standard sizes of bushings. Aluminum in conjunction with iron and nickel in C95500 acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.
it is a self-lubricating bearing material that consists of a high quality bearing bronze with solid lubricant pockets. A thin film of solid lubricant aids the running-in process if required.
Solid lubricants plugs
- is suitable for large dimensions
- has a low friction coefficient
- has a high wear resistance
- allows a high durability
Symbol: C95500 Casting Copper Alloy
Type: Aluminum Bronze Bushings
|
Chemical Composition mass/% |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Cu |
Sn |
Al |
Fe |
Mn |
Ni |
Pb |
Si |
P |
Zn |
|
Min78.0 |
- |
10.0-11.5 |
3.0-5.0 |
3.5 |
3.0-5.5 |
- |
- |
- |
- |
|
Mechanical properties |
|||
|---|---|---|---|
|
Tensile strength Mpa(Min) |
Yield strength MPa(Min) |
Elongation % |
Brinell hardness(HB) |
|
655 |
290 |
10 |
192 |
Application
Bronze Bushings
Light Duty Gears
Sprockets
Liners
Wear Strips
Washers
Impellers
General Bearings
Automotive Fittings
Suspension Bushings
Shaft Bushings
