| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | Bushing Standards Met: 83-7-7-3, ASTM B505, CDA 932, SAE 660 |
| Model Number: | Sleeve bearing type: |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Name: | Sintered Bronze Sleeve Bearing | Material: | Bronze Metal Powder |
|---|---|---|---|
| Type: | Sleeve, Flange,ring,split,Bushings | Shipment: | By Sea Or Air |
| Application: | Metal Sintered Fan Bushing | Applicable Industries: | Building Material Shops, Manufacturing Plant |
| Size: | Customizable | Material Standard: | SAE 841 |
| High Light: | Sintered Bronze Sleeve Bearing,Spherical Bronze Sleeve Bearing,SAE 841 Sintered Metal Bearings |
||
Advantages
Silent operation and smooth sliding
Resistance to dirt
Long service life
Corrosion-resistant
A wide array of variants and material types

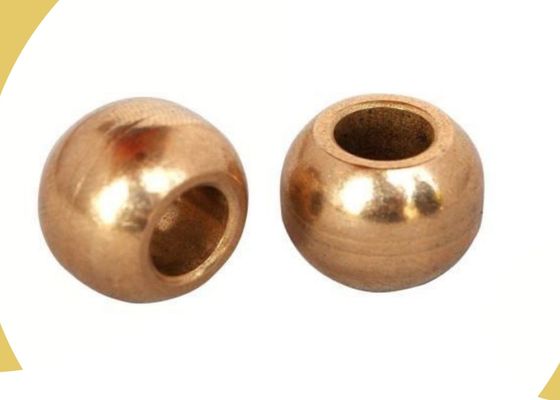

Bronze Spherical Bearing For Fan Powder Metal Sintered BRONZE METAL POWDER Spherical Bushing Slide Sintered Ring metal sintered fan bushing
Application
Sintered Bronze Bearings are widely used in construction equipment and are still highly reliable even under the most severe conditions, such as heavy earth-moving equipment, excavators, concrete pumps, pile drivers, lifting equipment, forklifts, pallet trucks, scissor lifts, inspection
|

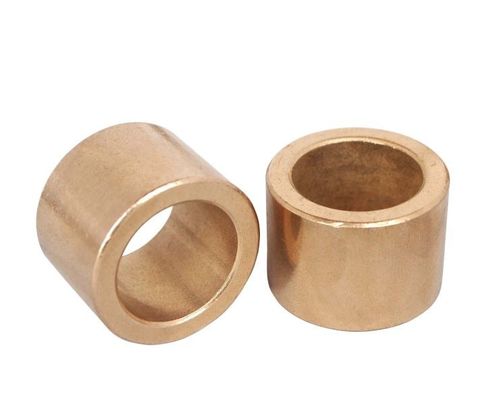

SAE 841 Powdered Metal Bronze, Sleeve Bearing |
|||||||||
|
Specifications SAE841 SLEEVE Bearing Oil Impregnated Bronze |
|||||||||
|
Material Powdered Metal / Oil Impregnated Bronze |
|||||||||
|
Material Standard SAE 841 |
|||||||||
|
Tolerances |
|||||||||
|
Inner Diameter Tolerance +.000 -.001 in |
|||||||||
|
Outside Diameter Tolerance+.000 -.001 in |
|||||||||
|
Overall Length Tolerance .005 in |
|||||||||
|
Chemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1% |
|||||||||
|
MPIF: CT-1000-K26 |
|||||||||
|
ASTM: B438 Grade 1, Type 2 Class A |
|||||||||
|
SAE 841 - Bronze Mil-B-5687 Type 1, Grade 1 |
|||||||||
|
Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200 |
|||||||||
|
Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest. |
|||||||||
|
After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. |
|||||||||
|
Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F. |
|||||||||
|
RoHS, REACH, DFARS compliant |
Advantages Of Powder Metallurgy Process
|
· Do not need or only very little machining |
|
· High usage rate of material(more than 95%) |
|
· Parts size consistency is good and stable. The precision can reach 0.01mm. |
|
· The material composition can be adjusted according to the customers’requirement of the parts performance. |
|
· Do the treatment on the surface of the parts according to customers’ requirement to improve the strength and hardness. |
|
· Due to the die forming, we can customize the complex shape or special profiled parts which other machining can not do. |
|
· Because suitable for mass production, the production efficiency is high and the cost is lower than machining. |
