| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | DIN 1494 / ISO 3547 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Bushing Material: | TIN BRONZE CUSN8 CUSN6 | Self-lubricating Bushings: | Self-lubricating Bearings,oil Holes,perforated |
|---|---|---|---|
| Application: | Components For Containers | Bushings Size: | Bronze Bushing 35-39-30mm |
| Bushing Size: | Special Dimensions And Imperial Sizes Are Available On Request | Type: | Sleeve,Flange,Thrust Washer |
| Model Number:: | E90F E92F E90 E92 BUSHINGS | Maximum Linear Velocity: | 2.5m/s |
| High Light: | CuSn8 Bronze Sleeve Bearings,CuSn8 Bronze Sleeve Bearings,DIN 1494 Bronze Sleeve Bearings |
||

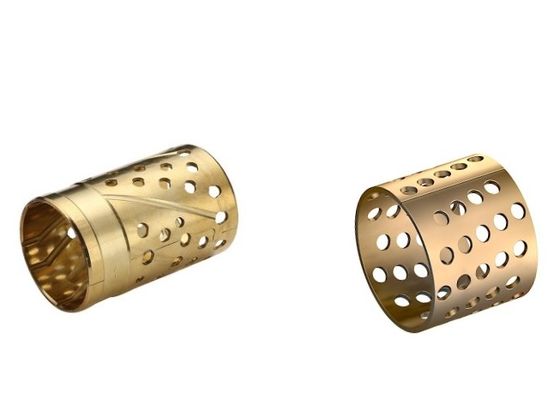

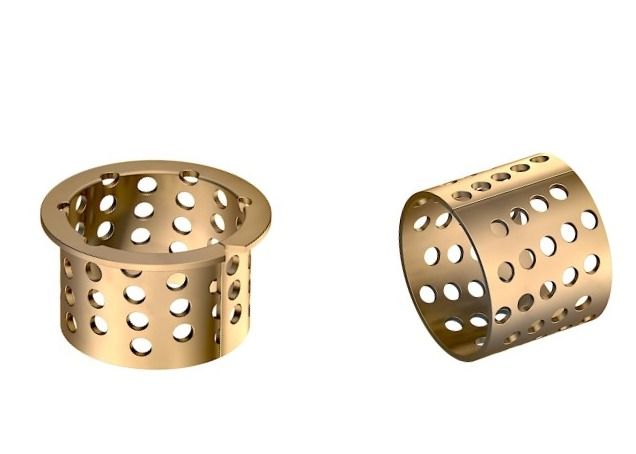

Bronze Bushings Size 45-50-40mm, Perforated,Split Type, metric size,made to order from china,self-lubricating bearings,oil holes,perforated,Bronze Bushing,accessories for containers.Made to order from china. For higher requirements – e.g. higher temperature ranges – different materials are available in this category.
Bronze is a versatile and commonly used material because it is available in many alloys and compositions. Bronze bushings (also called bronze bearings or solid bronze bushings) are tough and robust, unlike softer brass bushings. The bronze bushings have a long life and resist shocks, knocks, wear and corrosion. They require an external lubricant, such as grease or oil, during installation and during operation to reduce friction and wear.
| Performance indicators | data | |
| Maximum load | Static load | 120N/mm² |
| Dynamic load | 40N/mm² | |
| Maximum linear velocity | 2.5m/s | |
| High PV value | 2.8N/mm²・m/s | |
| Coefficient of friction | 0.08~0.25 | |
| The use of temperature | -100℃~+200℃ | |
| Coefficient of thermal conductivity | 60W/m・K | |
| Coefficient of thermal expansion | 15×-6/K | |
1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving
The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.
Agriculture machinery, truck cranes & construction machinery, suitable for impact loads
Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.
Request:
It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
