| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | DIN 1494, ISO 3547 STANDARD BUSHING, CuSn8P ,DIN 17662 |
| Model Number: | BUSHING TYPE FLANGED PLAIN SLEEVE |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Meterial: | Bronze CuSn8 092 090 | Type: | Bushes, Collar Bushes, Washers, Strips |
|---|---|---|---|
| Characteristics: | Self Lubricating Bronze Bearings | Quality: | OEM HIGH Quality Bushings |
| Plain Bushings Stock Size: | DxDxL Dimensional Tolerance,tolerance In Sizesize Tolerance | Sliding BearingFeature: | Corrosion Resistance |
| Temp: | -100℃~+200℃ | Max.Speed: | 2m/s |
| Highlight: | 150HB Bronze Plain Bearings,40N/mm² Bronze Plain Bearings,Self Lubricating Bronze Bearings |
||

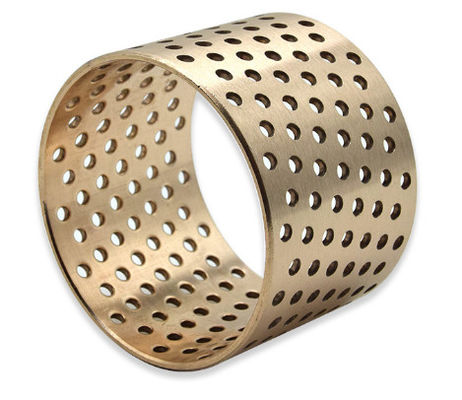

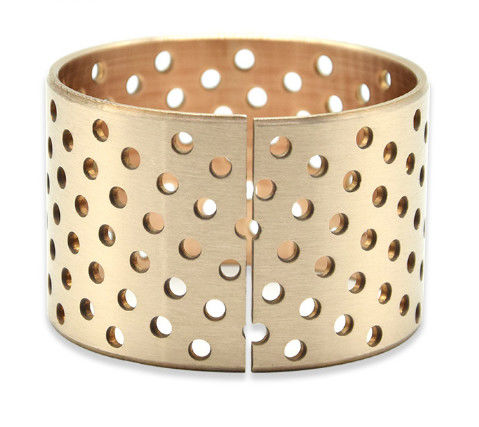

DIN 1494 Bronze Plain Bearings
Bronze Plain Bearings With Grease Holes Cylindrical Bushes ,Bronze Sleeve Bushing Made-To-Order From China; Made Of Material Cusn8p (Din 17662); Din 1494 / Iso 3547;Low Maintenance;With Lubrication Hole.
China specializes in the trade and production of metal and composite plastic sliding bearings, ranging from steel, bronze, stainless steel or bimetallic sliding bearings to sintered metal bushing.
Availability
Bearing forms available in standard dimensions. Cylindrical bushes.Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs.
Special manufacturing Bronze Sleeve Bushings.We can offer special sizes, shapes, forms or lengths upon request. Please contact us for a quotation or more information.
Bushings Assembly
The bearings are intended to be pressed into a housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.
Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble
Lubrication 092 bush | Bronze Plain Bearings with Grease Reservoirs
Vsb-22 092 Cylindrical Bushes
Bearing material made of solid bronze strip with indents for lubrication
Good wear resistance, suitable for rough conditions
Optimum performance under relatively high loads and low speeds
Easy for fitting and lubricating
High load capacity
Inner Diameter machineable parts are available against order
High level thermal conductivity
Minimum overall dimensions
Chemical resistance.
Initial pre-lubrication at assembly required...
Strusture
The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.
Technical Data
Structure And Composition
Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents
Bearing Properties
Max.Load | Static | 120N/mm² | Elongation | 40% |
Dynamic | 40N/mm² | |||
Temp | -100℃~+200℃ | |||
Coefficient of friction | 0.08~0.25 | |||
Max.speed(Lubrication) | Max.Speed | 2m/s | Thermal conductivity | 58W(m*k)-1 |
Max.PV | Max.PV | 2.8N/mm²*m/s | Coef. of thermal expansion | 18.5*10-6K-1 |
Tensile strength | Tensile strength | 450N/mm² |
|
|
Hardness | Hardness | HB 100-150 |
Typical Applications
This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing andsoon.
