| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO3547/ISO9001 |
| Model Number: | FB |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/ per Month |
| Keywords: | Grease Bronze | Apply For: | Building Machinery |
|---|---|---|---|
| Size: | Customizable | Material: | Bronze |
| Feature: | Easy Installation | Advantage: | Good Wear Resistance |
| Highlight: | Wrapped Bronze Bushings,140N/mm² Wrapped Bronze Bushings,Grease Bronze Sleeve Bushings |
||

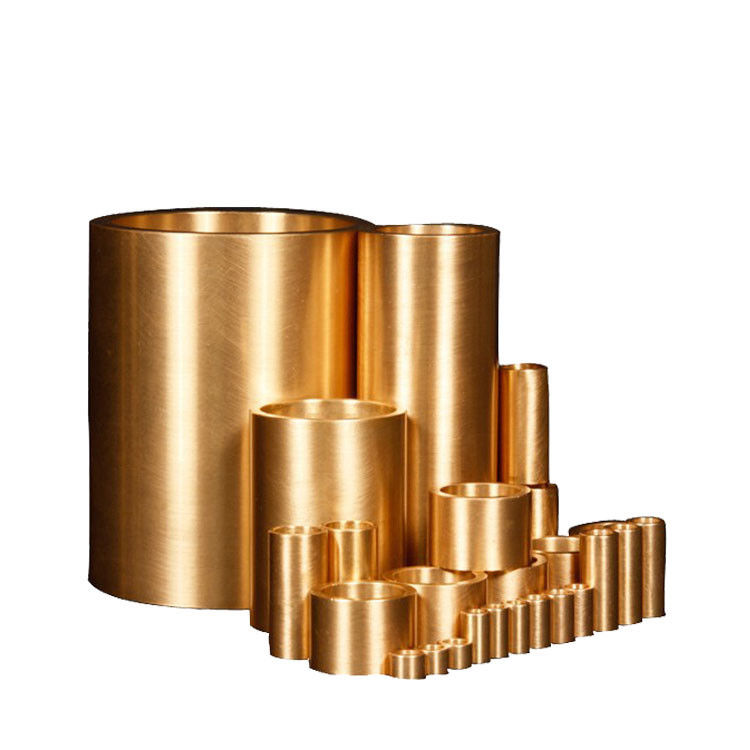

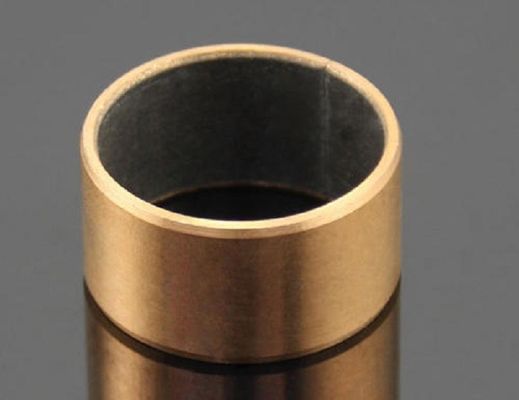

Cylindrical Wrapped Bronze Bushings

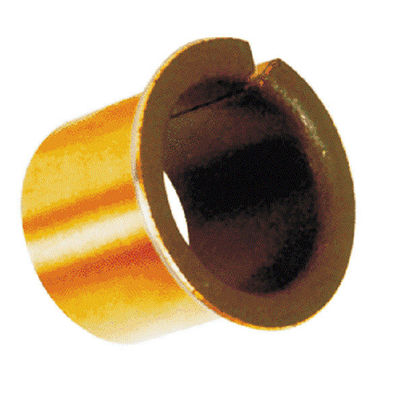

The bronze bushing has excellent wear resistance with lower friction & high level of thermal conductivity, also with excellent chemical stability, suitable for rough conditions. It can play optimum performance under relatively high loads and low speeds. The item can also be composed in steel housing or fabricaed into flanged bushes which both outer surface and inside bore can be used as working surface.This material of wear plate can be applied in sliding part of bridge surporter instead of PTFE plate,and it can reach the requirement of load capacity of 140N/mm2.
1. Product Description
Cylindrical Bushings Grease Bronze Sleeve Plain Bearings Cusn8P Oilless are made of bronze base,sinter with bronze powder and PTFE layer wih filling material of anti-high temperature. It has high safety factor and is particularly appropriate for high temperature environment where no oil is effcient and where he machine must be under successive long period working condition.
2. Specification
| Load capacity | Static load | 250 N/mm2 |
PVvalue limit | Oil lubrication | 50 N/mm2.m/s |
| Dymamic load | 140 N/mm2 |
Dry friction | 3.6 N/mm2.m/s |
||
| Oscillating | 60 N/mm2 |
Friction coef μ | 0.03~0.18 | ||
| Speed limit | Oil lubrication | 5 m/s | Working temperature | -195℃~+300℃ | |
| Dry friction | 2m/s | Themal conductivity | 70W/mk | ||
| Coefficient of linear expansion | 17× 10 -6/K |
||||
3. Application
Cylindrical Bushings Grease Bronze Sleeve Plain Bearings Cusn8P Oilless are widely applied in hoisting machinery, metallurgical machinery, building machinery etc.
