Construction Machinery C86300 C93200 C95400 Cast Bronze Bushings

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO 9001/ ASTM
Model Number:	more size

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	10-15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/ per Month

Contact Now

Detailed Product Description

Product Name:	Cast Grooving Bronze Bushing	Type:	Sleeve,Flanged
Material:	Bronze	Size:	Customizable
Application:	Construction Machinery,transport Equipment,pulp And Papermaking Machinery,offshore Equipment
High Light:	C95400 Cast Bronze Bushings , C93200 Cast Bronze Bushings , C86300 Cast Bronze Bushings

Construction Machinery C86300 C93200 C95400 Cast Bronze Bushings

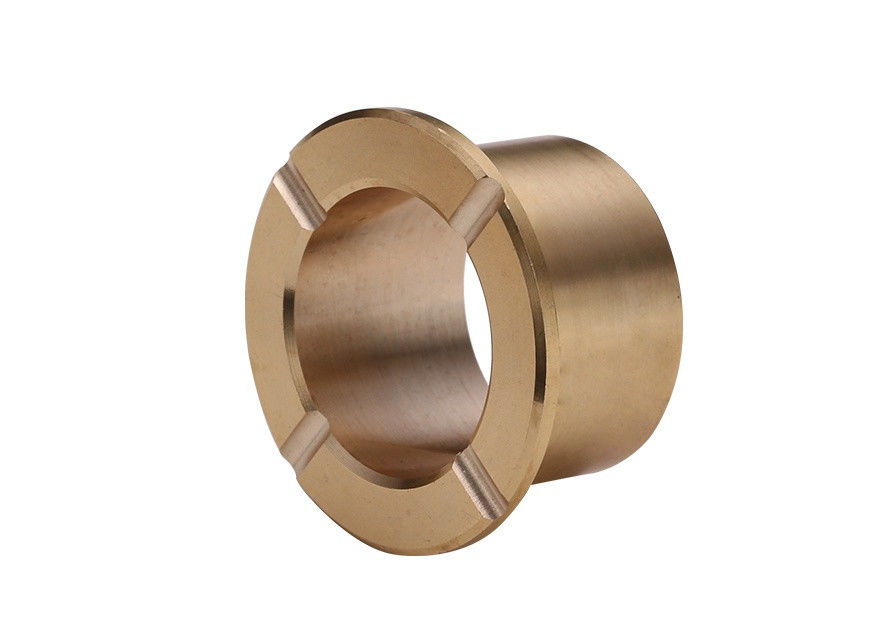

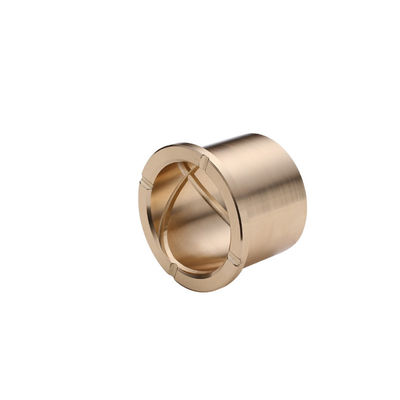

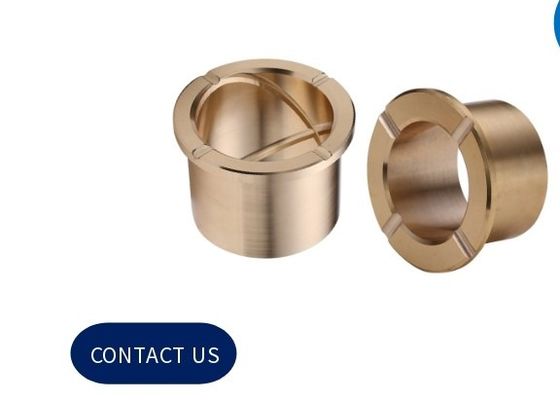

Grease grooves are mandatory for cast bronze bushings bearings as they require high greasing intervals. viiplus can design the right bronze bushings parts groove type system for our clients’ applications. Sleeve or flange size, mm. Therefore, it is also important to understand whether the bronze bushings are greased through the pin or the housing. Greasing points on the housing will require additional grooves and lubricatings holes on the outer diameter. Spiral and “figure of 8” groove systems are among the most common ones.soild bronze bushing bearings are considered as high-maintenance materials.

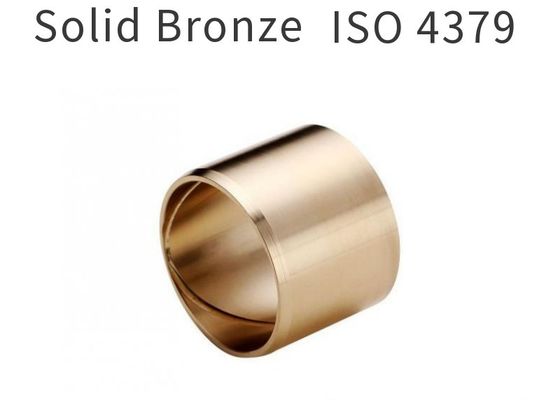

Slide Bearing - Solid turned bronze bushing, heavy-maintenance, DIN 1850/ISO 4379, Heavy maintenance, groove type or bronze with lubricant plugs embedded

grooving bronze bushing have a lot of grooving kind, use suitable grooving can produce oil film in the matching parts, so as to better protect the corresponding parts, reduce its friction, reduce loss, improve Solid Bronze Alloy Bearings according to ISO 4379 product life, reduce the maintenance cost of the machine, we have production equipment, and a large number of inventory, can be used for your urgent need or normal consumption,you can contact us for a free quote.

Featrue

• Conventional bearing material for lubricated applications in general engineering applications
• Suitable for oil and grease lubrication

Bearing forms made to order: cylindrical bushes with bronze alloy according to ISO 4379, special parts according to ISO, DIN or customer design, special alloys

Characteristic

Cast bronze bearing is made of all kinds of centifugal cast bronze material with different oil grooves. They are widely used in all kinds of industries such as agricultural machines,cranes,spring bolt,ransmission systems,turning axis and ect.

1. Can work without oil for a long time;

2. It is more suitable for heavy load and low-speed working conditions, with good wear resistance and very low friction coefficient;

3. Suitable for reciprocating motion, rotation, intermittent motion and other occasions where oil film is difficult to form;

4. Corrosion resistance and anti-aging;

5. Suitable for temperature range from -40 ℃ to 300 ℃;

6. Compared with the rolling bearing, the thickness is thin, saving space and suitable for complex situations.

Chemical compositon & Properties

C86300 Manganese Bronze

Material	CuZn25Al6Fe3Mn3
Properties	Unit	Value	Unit	Value
Tensile strength	Mpa	755	psi	110,000
Elongation	%	12	%	12
Hardness	HB	210	HB	210

C95400 Manganese Bronze

Chemical Compositon(%)
Cu	Zn	Al	Fe	Mn	Ni	Pb	Si	Sn	Other
>83	/	10.0-11.5	3.0-5.0	0.50	1.50	/	/	/	0.50
Properties
Tensile Strength(Mpa)		Yield strength(Mpa)	Elongation(%)			Hardness(HB)
586		221	12			170

Cast bronze bushing machining copper sleeve from the technical and cost level to provide excellent bearing solutions. Copper sleeve with high bearing capacity, light weight, corrosion resistance and other characteristics, according to the bearing design life and application, we can provide different kinds of alloy materials to meet the corresponding application requirements. As a machined Solid Bronze Alloy Bearings according to ISO 4379
, the tolerance grade of the Solid Bronze Alloy Bearings according to ISO 4379 is much higher than that of the rolled bearings.

Applications

This type of bearing can be used in dry environments, with high temperatures, high pressure, corrosive, aquatic or other chemical environments when oil cannot be introduced. It is widely used in automotive Solid Bronze Alloy Bearings according to ISO 4379 lines, water engineering, floodgates, the plastics industry, subsequent casting machines, steel rollers in the metallurgical industry, mineral machines, ships, turbogenerators, hydraulic turbines and injection molding machines.

With the advantages of lightness, low noise and self-lubricating characteristics, VIIPLUS bearings are widely used in the automotive industry and applications are still in rapid development. Currently, there are more than 50 rings used in each passenger car and more and more traditional needle bearings, sintered bearings are replaced by self-lubricating bearings. In addition to the bearing,

·Conventional bearing material for lubricated applications in general engineering applications
·Suitable for oil and grease lubrication

Our Service

1. We can produce non-standard dimensins according to your requirements;

2. Competitive price

3. High quality

4. Customer's drawing or samples accepted

5. Small order accepted

6. Choose the different package to your needs

7. Customized the marks based on your requirment
