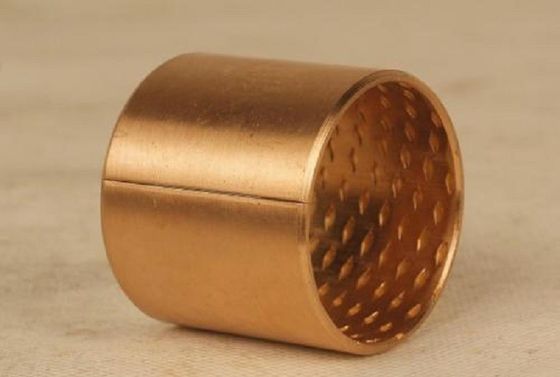

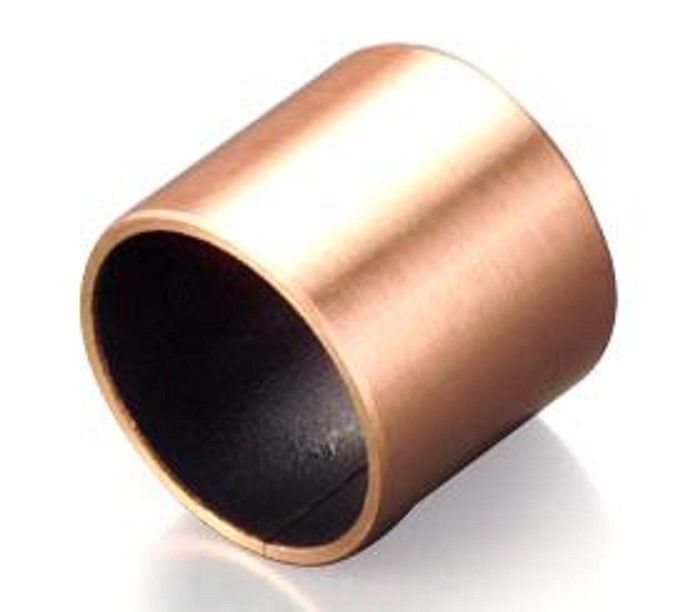

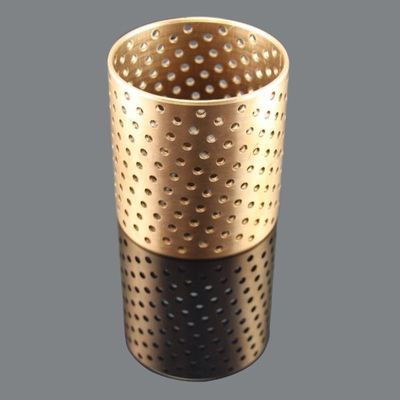

Customized Sliding Bronze Bushings With Oil Hole CuSn8/CuSn6 Non-Pollution
1. Product Description
Customized Sliding Bronze Bushings With Oil Hole CuSn8/CuSn6 Non-Pollution is a CuSn8P tin-bronze alloy based product. In order to improve tribological behavior the sliding layer can be applied with different layouts of lubricating sockets depending on operating conditions. It shows good anti-fatigue- and anti-erosion behavior as well as a good wear resistance and high load capacity. Products of Bronze Sleeve WHB900 series are applied under operating conditions such as high loads and low running speeds.
2. Specification
| Load capacity | Static load | 160 N/mm² | PVvalue limit | Oil lubrication | 70 N/mm² 2.m/s |
| Dymamic load | 50 N/mm² | Dry friction | 3.0 N/mm² 2.m/s | ||
| Oscillating | 70 N/mm² | Friction coef μ | 0.08~0.25 | ||
| Speed limit | Oil lubrication | 5 m/s | Working temperature | -40℃~20℃ | |
| Dry friction | 2.5m/s | Thermal conductivity | 60W/mk | ||
| Coefficient of linear expansion | 18.5x 10 -6/K |
||||
3. Advantages
This bushings manufactured using advanced tooling, can be processed into a variety of engineering conditions apply oil hole, oil pit, sump friction surface strip, so that the sleeve can store a lot of grease in use, to extend the refueling interval, effective increased service life.The bronze bushes are very easy to mount in various applications, thanks to their minimal bulk. In addition to being easy to mount, this type of bush is set apart by its excellent sliding capacity and simplified lubrication (long lubrication intervals).
4. Application
Customized Sliding Bronze Bushings With Oil Hole CuSn8/CuSn6 Non-Pollution are widely applied in building machinery, packing machinery ,petroleum machinery ,pneumatic industries etc.
